SWT-V355 (4"-14") Hydraulic Butt Fusion Machine
DESCRIPTIONSWT-V355H is hydraulic butt fusion welder. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without
any additional equipment by simply adjusting the clamps drag bar. It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.
Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.

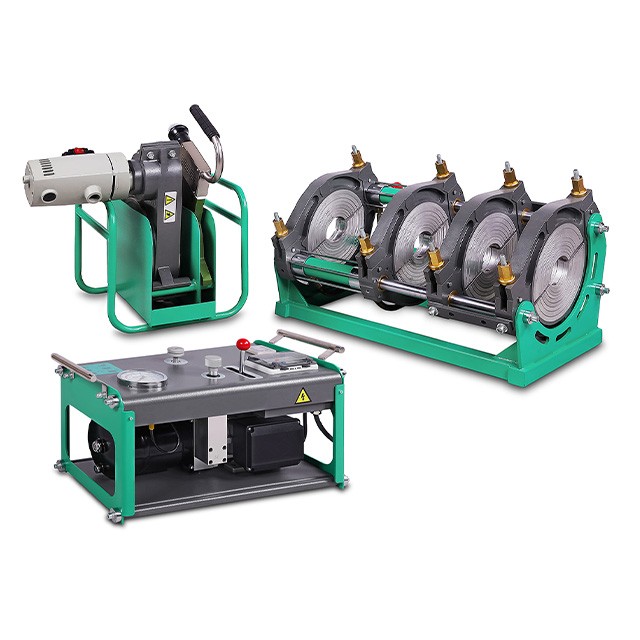

V355 includes:

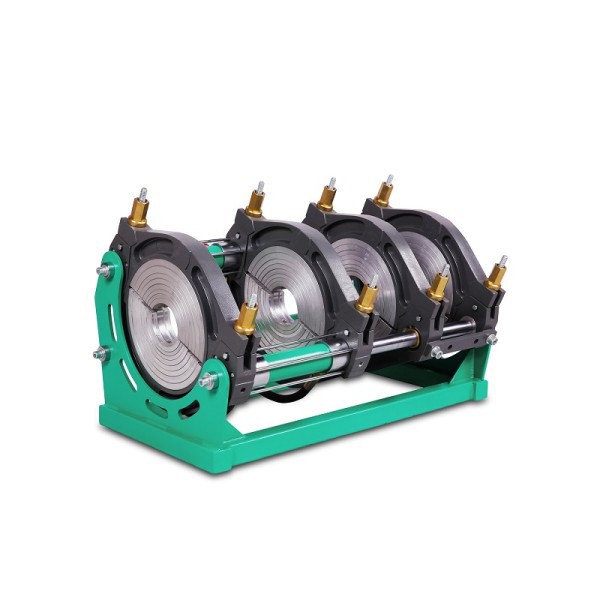

*A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
*A Teflon coated heating plate with separate temperature control system;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.
Available options:
Data logger;
Support roller;
Stub end holder;
Different inserts (single insert, ISO inserts).
FEATURES
| Welding range | 90mm－355mm |
| Reducing Inserts | 90 mm-110 mm-125 mm-140 mm-160mm-180mm-200mm-225mm-250mm-280mm-315mm |
| Ranges of application | PE，PP and PVDF |
| Working voltage | ～220V±10%，50/60Hz |
| Total power | 5.85 kW |
| Planning tool | 1.1 kW |
| Heating plate | 4kW |
| Hydraulic unit motor | 0.75 KW |
| Environment temperature | －10° ～ 45° |
