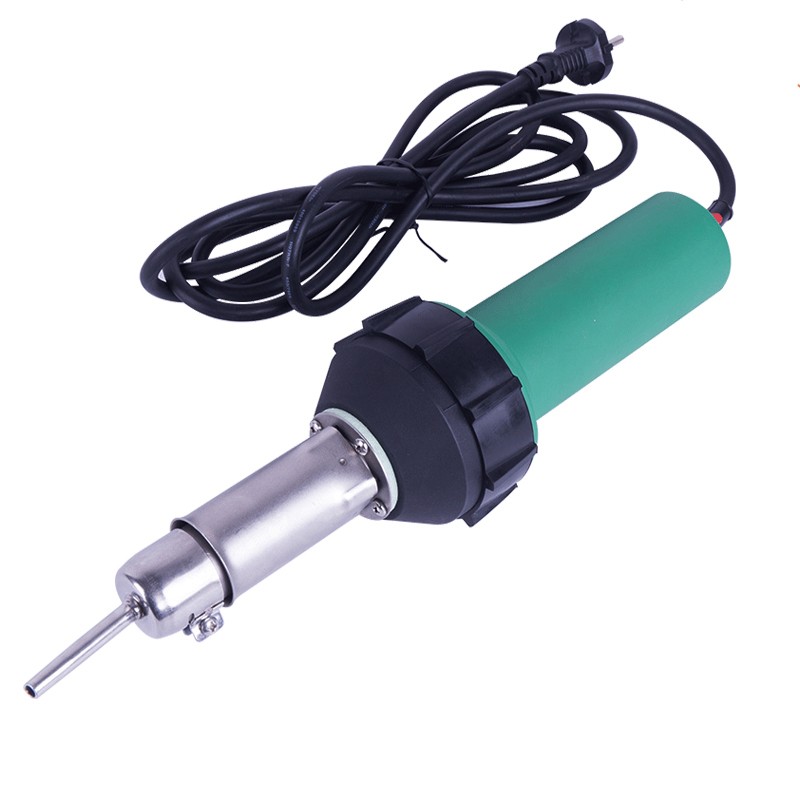

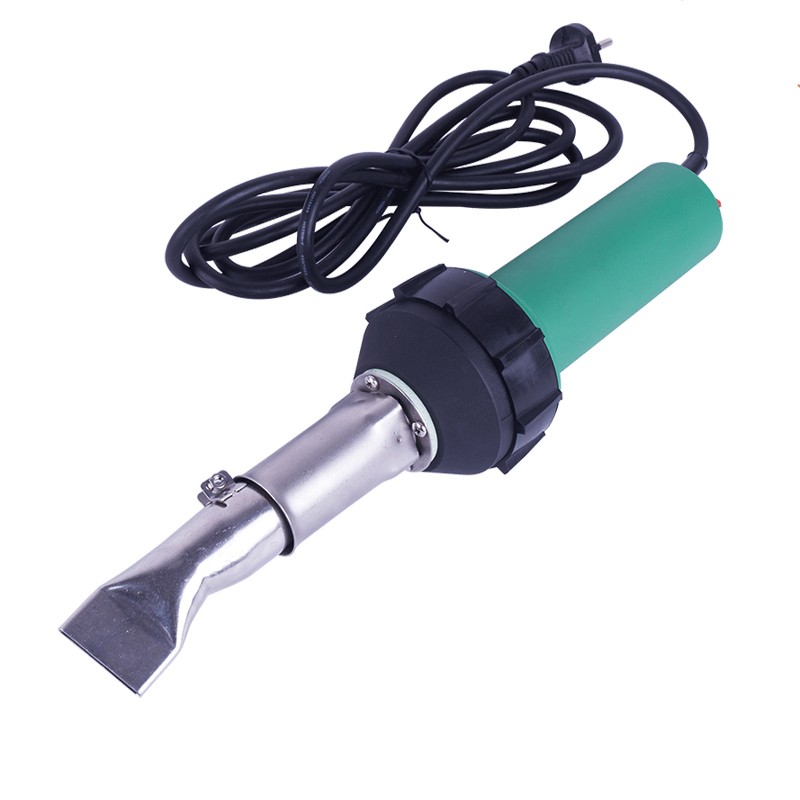

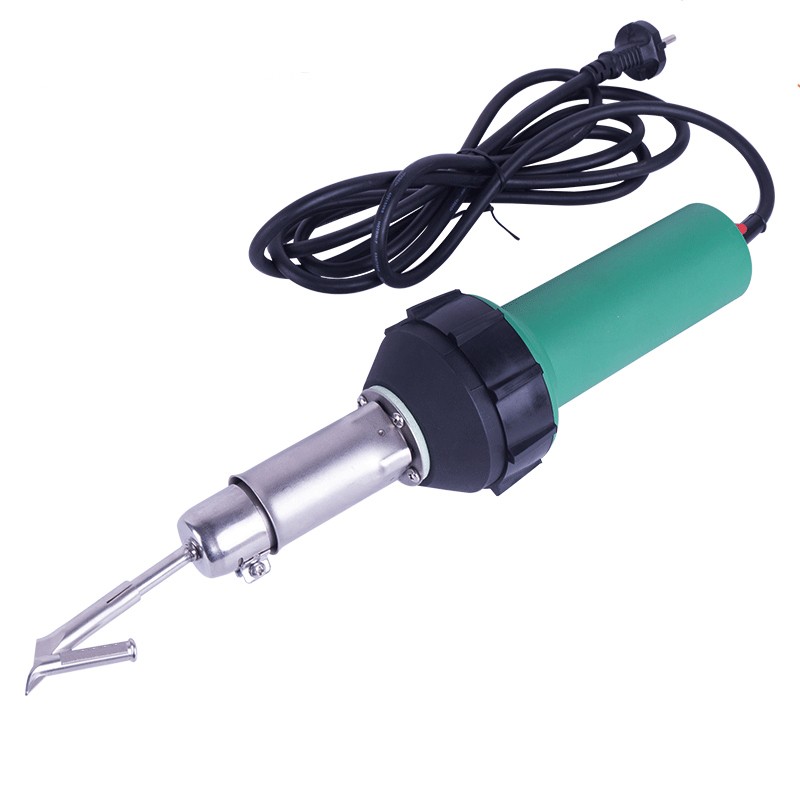

SWT-NS1600S Hot Air Welder

  • Product Item:SWT-NS1600S
  • Voltage: 220V/110V
  • Power: 1600W
  • Temp: 20-600℃
  • Applicable to welding PE,PP,EVA,PVC,PVDF,TPO.
  • Inquiry Send Email

    Description

    SWT-NS1600S HOT AIR WELDING GUN
    SWT heat gun series are sort of our company’s new style manual hot air welding tools which on top of technology and got CE certificate.
    This heat guns is double insulation,constant temperature controlled and continuously adjustable.
    It is suitable for welding hot plastic material like PVC ,PP,PE, PVDF, EVA,ECB,TPO etc.
    it is also used for thermos forming,shrinking,drying,igniting operation.

    Voltage 110V/220V
    Power 1600w
    Frequency 50/60Hz
    Temperature 20-600 °C steplessly adjustable
    Air volume Max 180L/Min
    Air pressure 2600Pa
    Noise level Less than 65Db
    Weight 1.5 KG (Including 3m electrical wire)
    Color Green/ Purple/Customize color
    Plug standard                Euro plug/ U.S. plug/ British plug/ Australia plug

    Application
    Welding of thermoplastic materials as well as single-ply flexible plastics and modified bitumen in the form of boards,tubes,
    profiles,lining membranes, coated materials,films,foams,tiles and sheets.
    Main welding ways: overlap welding, welding with rod/ tape, butt welding and melt welding.
    For foaming, ending and sealing of the thermoplastic semi-finished materials and plastic granules.
    Drying of water-damp surfaces.
    Shrinking of heat-shrink sleeves, films, tapes, solder sleeves, preformed and mould  part.
    Soldering of copper pipes, solder joints and metal foils.
    Defrosting of frozen water pipes.
    Activating and dissolving of solvent free adhesive and fusion adhesives
    Igniting of wood shavings, paper, coal or straw in furnaces.
