Description
Descriptions:
It is used for welding PE,PP,PVDF and so on.
This tool is of light weight,stable performance,convenient operation,
large-amount extrusion and high efficiency,
the advantage is for welding narrow gap and corners where is not easy to reach.
Features:
1. Left side welding head.
2. 1350w Germany Metabo extruding auger.
3. 3400w CE approved hot air blower for preheating parent materials.
4. 800W welding rod heating system inside the machine.
5. LCD display controller shows the welding rod heating temperature in real time.
6. Exclusively developed feeding and extruding systems to get smoother extrusion and longer lifetime.
Technical Parameter:
Voltage:230V,Frequency:50/60Hz
Total Power:5550W ( 1350W auger+3400W hot air blower+800W welding rod heater)
Air Temp:20-620°C Adjustable
Welding Speed:2.0-2.5Kg/h
Welding Rod diameter:3.0mm-4.0mm,5.0mm can be customized
Welding subject thickness:0.2mm-60mm

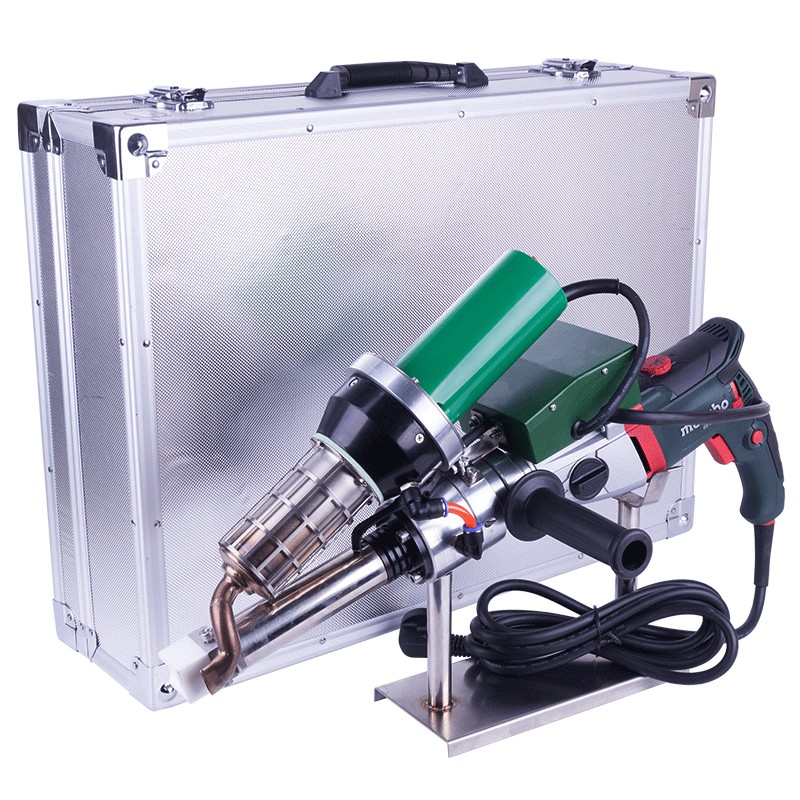

Package: aluminum case inner and paper box outer
Packing List:
It is used for welding PE,PP,PVDF and so on.
This tool is of light weight,stable performance,convenient operation,
large-amount extrusion and high efficiency,
the advantage is for welding narrow gap and corners where is not easy to reach.
Features:
1. Left side welding head.
2. 1350w Germany Metabo extruding auger.
3. 3400w CE approved hot air blower for preheating parent materials.
4. 800W welding rod heating system inside the machine.
5. LCD display controller shows the welding rod heating temperature in real time.
6. Exclusively developed feeding and extruding systems to get smoother extrusion and longer lifetime.
Technical Parameter:
Voltage:230V,Frequency:50/60Hz
Total Power:5550W ( 1350W auger+3400W hot air blower+800W welding rod heater)
Air Temp:20-620°C Adjustable
Welding Speed:2.0-2.5Kg/h
Welding Rod diameter:3.0mm-4.0mm,5.0mm can be customized
Welding subject thickness:0.2mm-60mm
Package: aluminum case inner and paper box outer

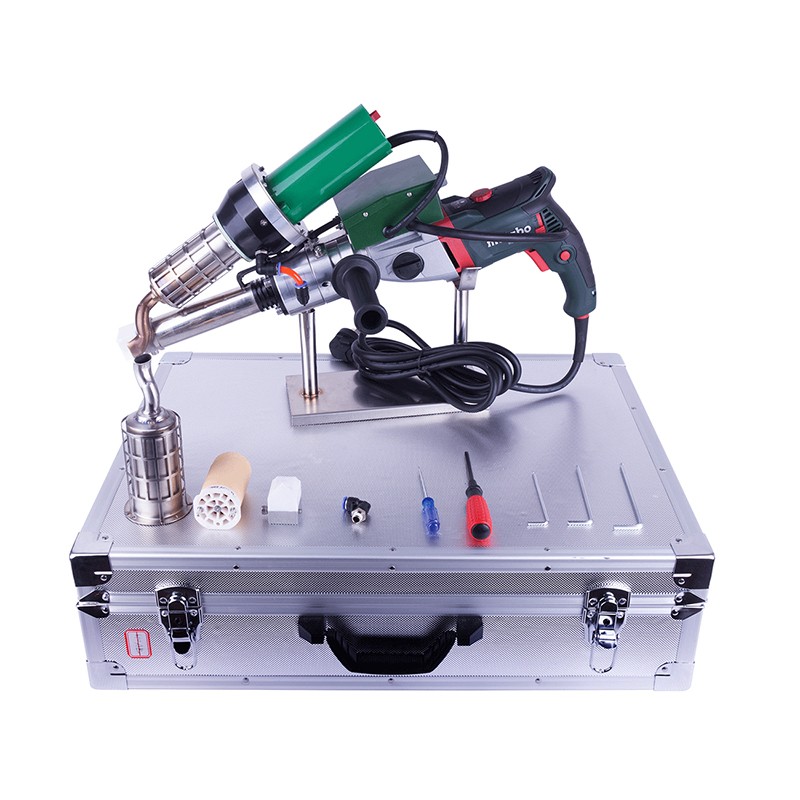

Packing List:
1. one hand extruder welder SWT-NS610B
2. one 90 degree angle Teflon welding shoe
3. one flat Teflon welding shoe
4. one spare 220v/3400w heating element
5. one air tube connector
6. small hand tools
7. one alu carry box
8. one handle
9. one English Manual
