Description

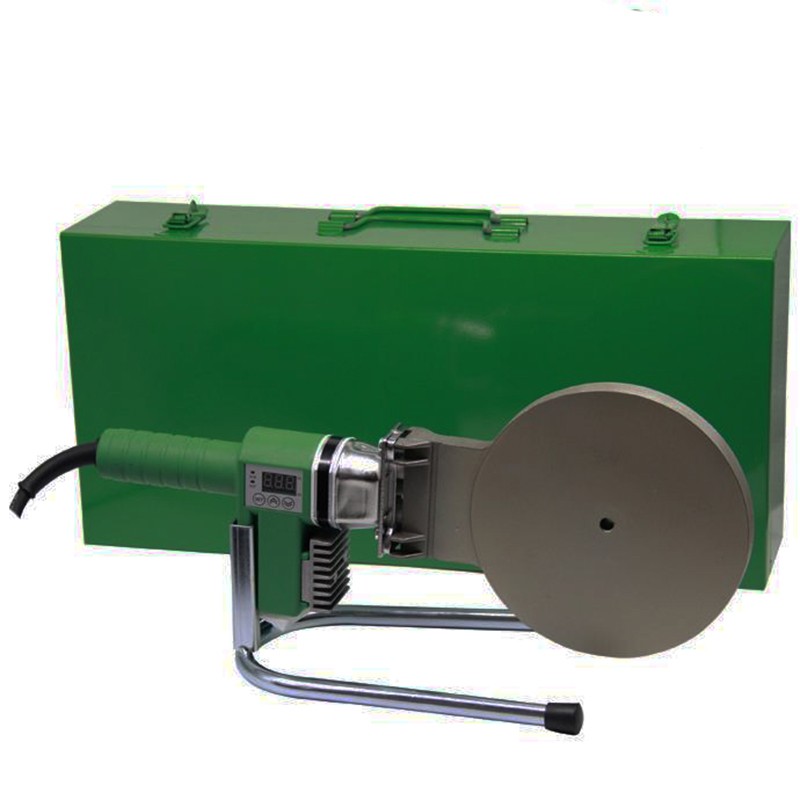

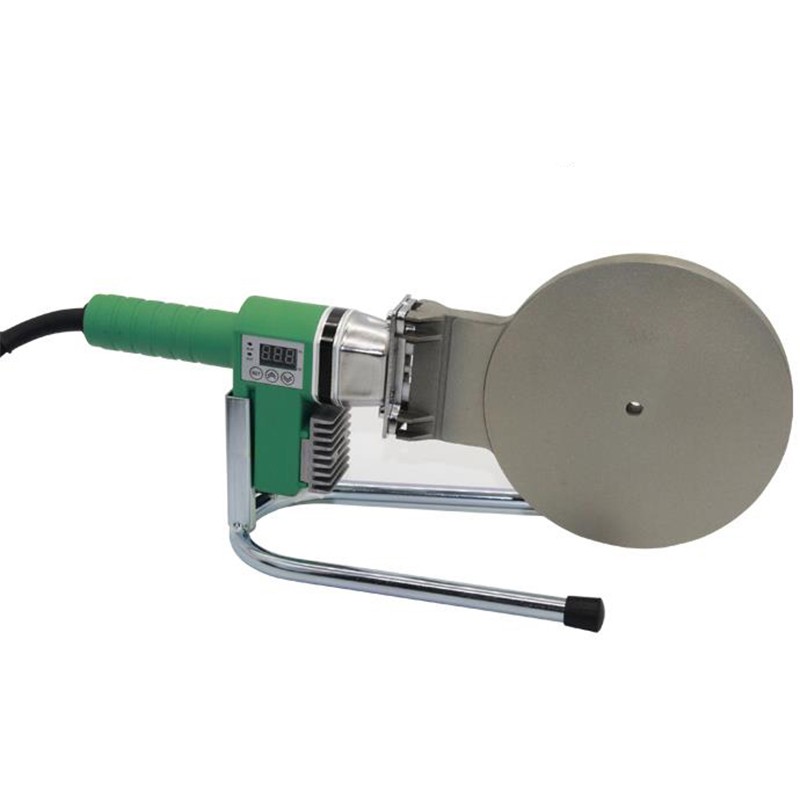

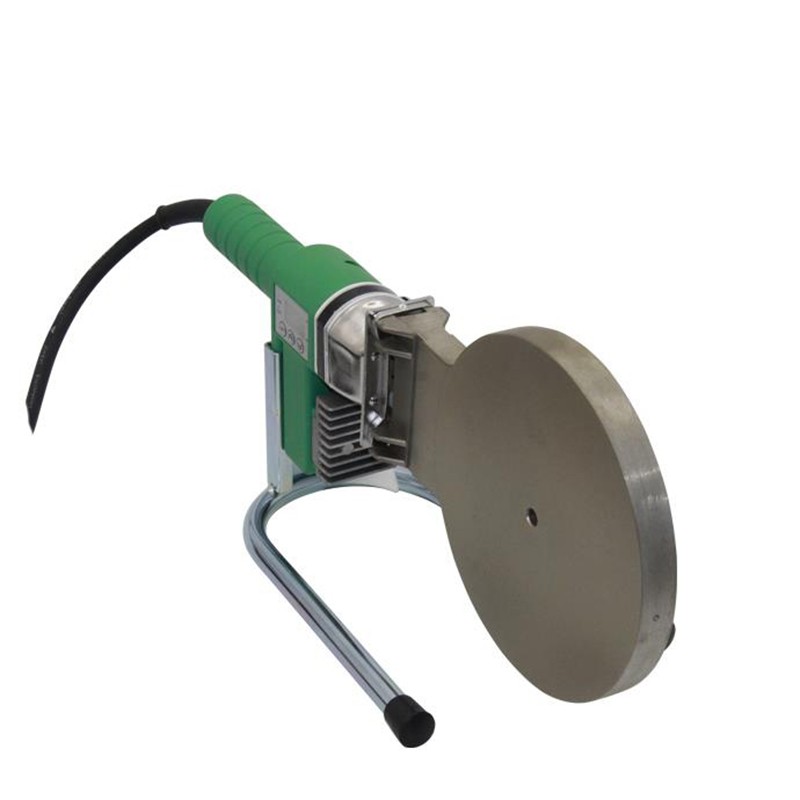

ZRJQ-160 Digital Socket Fusion Machine
These series of plastic pipe socket fusion tools are new types of hand-held electronic & thermostatical tools for

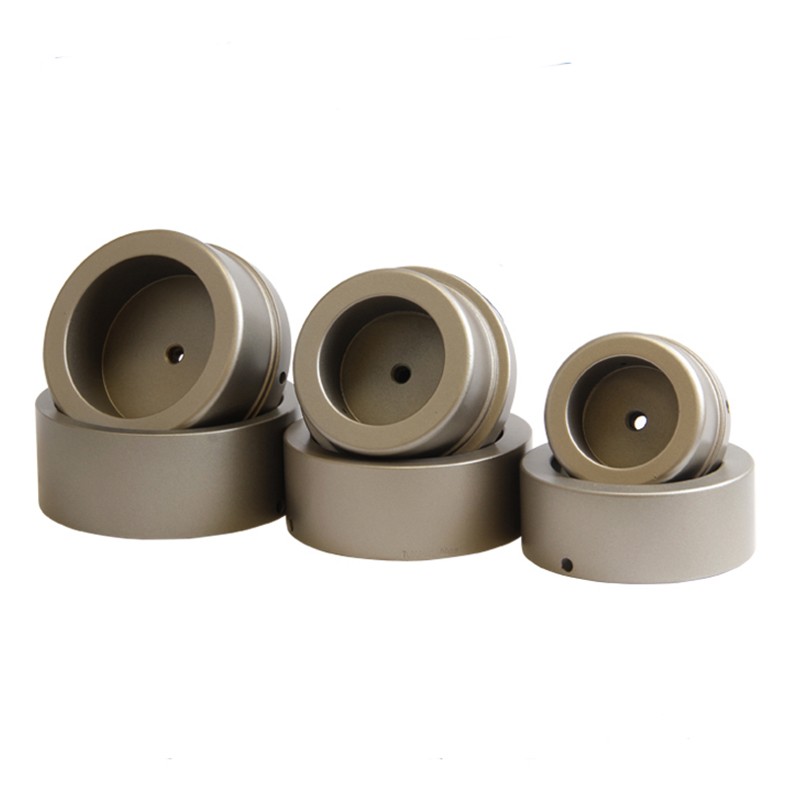

heating and joining plastic pipes & fittings including PPR,PB and HDPE with aluminum sockets and spigots.
For support on the building site or in the workshop.
The tools are composed of quality electric heating plate,electric controller,comfortable nylon plastic handle shell.
There are 2 series with different size and operation for meeting different customer’s requirement .
RJQ series are based on the standard and regular hand-held socket welder with a new controller for overheat
protection and easy operation.
Digital series of ZRJQ models add a digital controller and screen for improving the accuracy of the heating temperature.
The temperature range can set as demand of different plastic pipes & fittings, required fusing temperature can
fix and display on the screen, environment temperature will be adjusted and updated automatically,
over-temperature will be alarmed automatically and etc.
This provides a more excellent fusing result.
Fusing Standards:
|
External diameter of pipes (mm) |
Fusing depth (mm) |
Heating time |
Processing time (s) |
Cooling time |
|
|
A |
B |
||||
|
16 |
13 |
13 |
5 |
4 |
3 |
|
20 |
14 |
14 |
5 |
4 |
3 |
|
25 |
15 |
16 |
7 |
4 |
3 |
|
32 |
16.5 |
18 |
8 |
4 |
4 |
|
40 |
18.0 |
20 |
12 |
6 |
4 |
|
50 |
20.0 |
23 |
18 |
6 |
5 |
|
63 |
24.0 |
27 |
24 |
6 |
6 |
|
75 |
26.0 |
28 |
30 |
8 |
8 |
|
90 |
29.0 |
31 |
40 |
8 |
8 |
|
110 |
32.5 |
36.5 |
50 |
10 |
8 |
|
125 |
36 |
38 |
75 |
12 |
10 |
|
140 |
39 |
40 |
90 |
15 |
15 |
|
160 |
45 |
48 |
120 |
15 |
20 |
Note:If The Surrounding Is Lower Than 5℃,The Heating Time Should Be Extended 5%.
