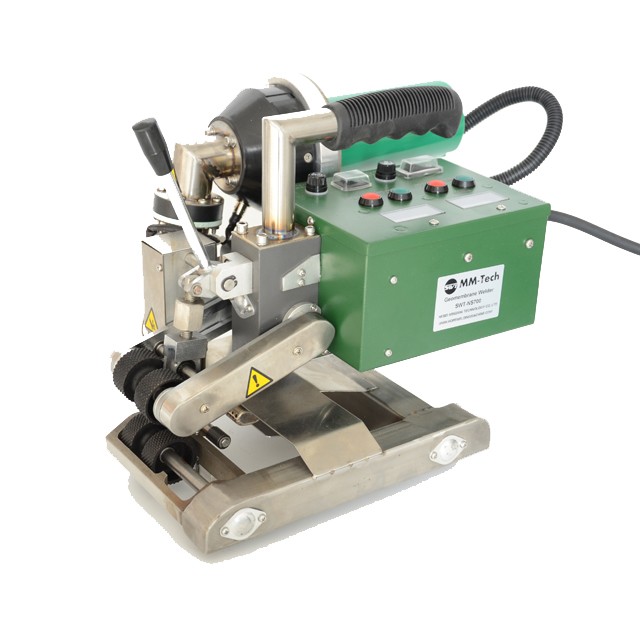

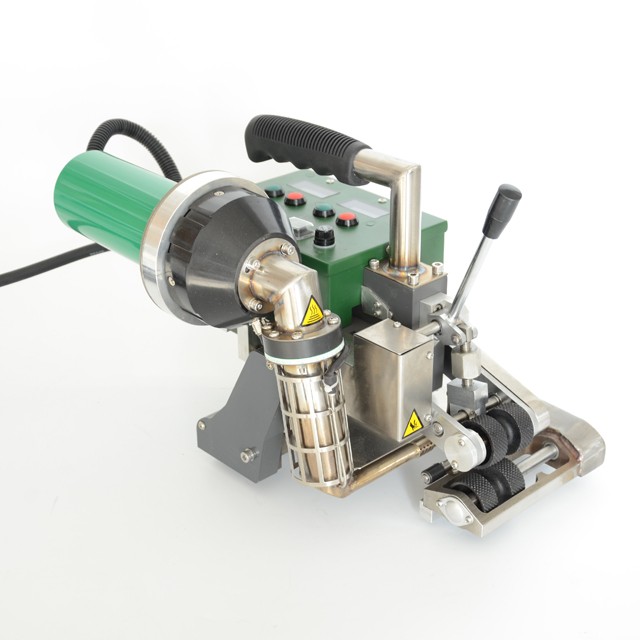

SWT-NS700 Geomembrane Welding Machine

  • Product Item:SWT-NS700
  • Welding Thickness: 1.0mm-3.0mm
  • Power: 3000W
  • Welding width:12.5mm×2
  • Welding speed: 0.5-4m/min
  • Inquiry Send Email

    Description

    SWT-NS700 Geomembrane welder with hot air gun.
    It can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and PVC,HDPE,EVA,PP.
    The control of this series adopt PID automatic thermostatic control with high control and low temperature fluctuation. Speed control of this series adopt PWM automatic voltage and regulation speed circuit. Direct current servo the motor drive with great output torque and staple performance in walking. It can maintain a constant speed on the condition of creeping, vertical creeping and road load. Also this series of welding machine are stable in performance despite of external temperature and voltage variation.This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction.
    Technical Parameter
    Voltage: 110V/220V±10%
    Power: 3000W
    Frequency: 50/60Hz
    Welding Area: 15mmX2, Test Channel:15mm
    Dimensions: 352(L) X 267mm(W) X 267mm(H)
    Weight: 7.5Kg
    Usage: Plastic Welding
    Welding Speed: 0.5-4 m/min
    Welding Temp: 20-600 ℃
    Welding Width: 15mm X 2,Cavity 15mm
    Thickness of Material: 0.5-3.0mm
    Overlap Width: 160mm
    International warranty 24months.
    Any parts broken or does not work under normal operating,we are free to provide.
