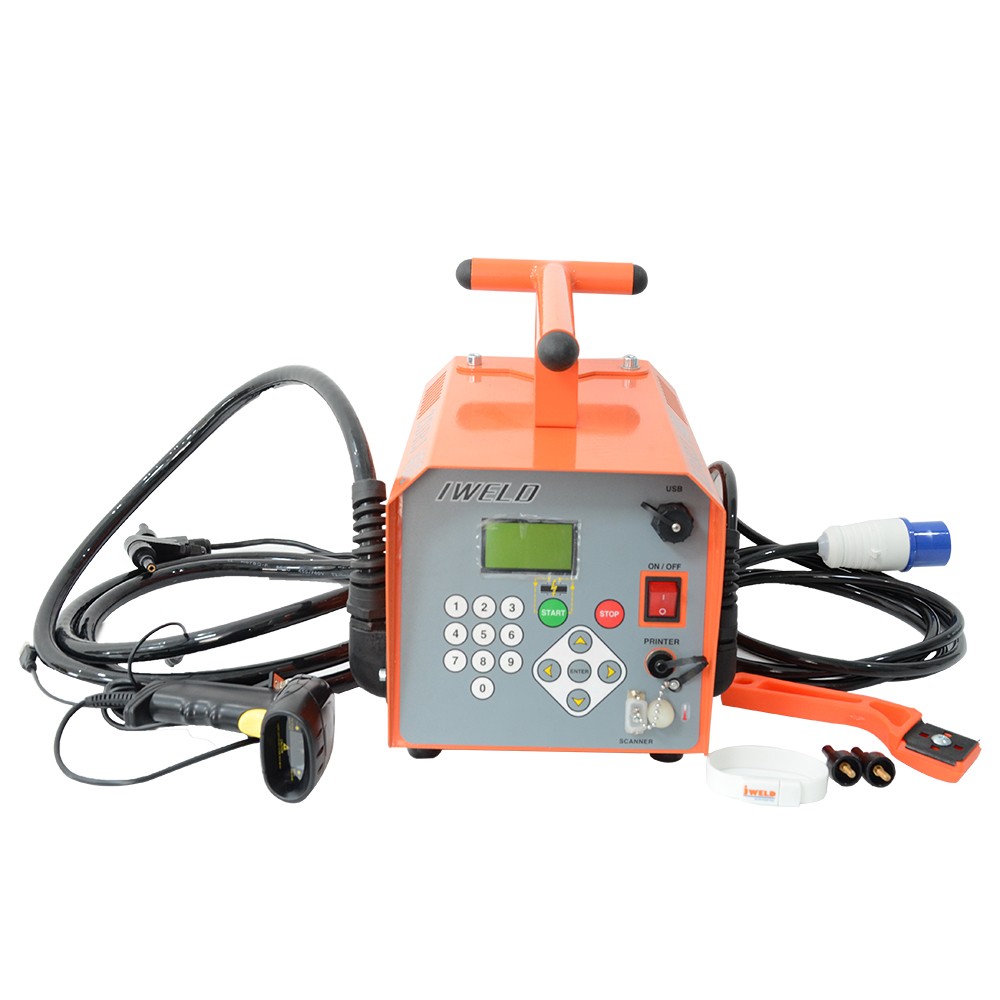

ZDRJ800 Electrofusion Machine

Product Item：ZDRJ800

Voltage: 230V, 50/60Hz

Welding Range:20-1200MM

Material:HDPE,PPR

Memory:4000 Welding Cycles

Description

Fusion by bar code reading/by manual introduction of bar code/by manual introduction of tension and fusion time
The smart scanning gun can be used to identify the bar codes of most pipe factories at home and abroad
Inbuild memory with 4000 welding cycles,Data can be download to laptop by usb or print on worksite
Automatic temperature compensation according to environment temperature
Universal connector 4-4.7mm,whether the connector is good or not is directly related to the quality of welding, must replace in time
Intelligent design, when the machine fails, it will show the error.
(Like supply voltage,output current,ambient temperature),under voltage or over-voltage may cause under-melt or over-melt

Standard Configuration:
machine body
scanner
manual scraper
transport case
4.7*4.0 connectors
On request:

printer

Technical Feature:

Model	ZDRJ200	ZDRJ 315	ZDRJ 400	ZDRJ 630	ZDRJ 800
Working range	20-160mm	20-315mm	20-400mm	20-630mm	20-1200mm
Materials	HDPE-PPR	HDPE-PPR	HDPE-PPR	HDPE-PPR	HDPE-PPR
Dimensions	358285302	358285302	358285302	368290310	370300320
Weights	21KG	23KG	23KG	25KG	25KG
Rated voltage	220VAC-50/60Hz	220VAC-50/60Hz	220VAC-50/60Hz	220VAC-50/60Hz	220VAC-50/60Hz
Rated power	2700W	2700W	2700W	2700W	3500W
Working temperature	.-10°C-40°C	.-10°C-40°C	.-10°C-40°C	.-10°C-40°C	.-10°C-40°C
Output voltage	8-44V	8-44V	8-44V	8-48V	8-48V
Max. output current	80A	80A	80A	100A	120A
Protection degree	IP54	IP54	IP54	IP54	IP54
Connectors	4.7/4.0	4.7/4.0	4.7/4.0	4.7/4.0	4.7/4.0
Memory	4000	4000	4000	4000	4000
