Description

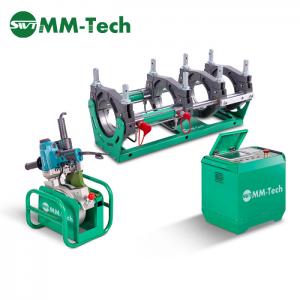

Automatic butt fusion machine CNC series
Feature:
1.Preloaded major welding standard (DVS,TSG,D2002-2006 and others),fully record the welding parameters, Welding record is true ,
2.Welding data can be printed and can be transform to thermal via wifi,realize real-time monitoring
3.Traceability option: position,material,date,operator,welding parameter and others
4.Stable quality ,long working life, can reduce the loss caused by equipment failure.
5.New touch screen, GPS location, Enter the operating system by swiping card. strictly control welding operation and quality
6.The 4th clamp is separated from the machine facilitate laying operation and the weld of tee fitting, elbow ,flange
7.Heating plate pop-up automatically, no manual operation, reduce operation step, Increase the level of automation
Standard composition:

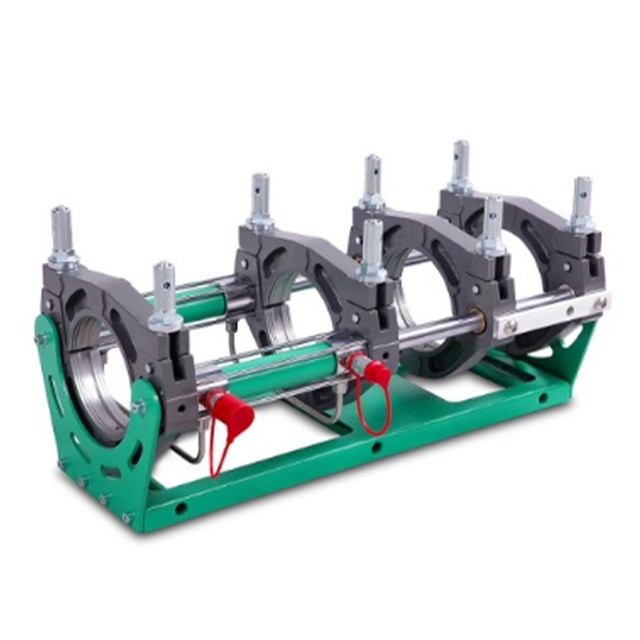

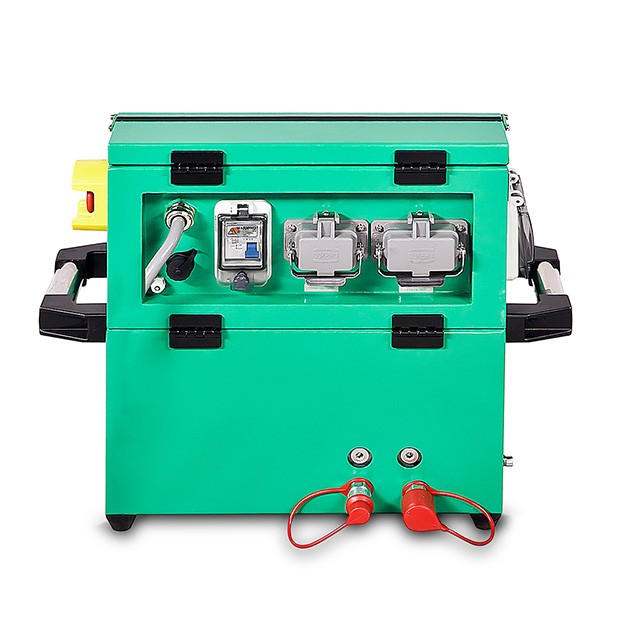

Machine body,milling cutter,heating plate,Hydraulic control unit,support,tool bag,clamps 63,90,110,160,200,250,315mm.
Feature:
1.Preloaded major welding standard (DVS,TSG,D2002-2006 and others),fully record the welding parameters, Welding record is true ,
2.Welding data can be printed and can be transform to thermal via wifi,realize real-time monitoring
3.Traceability option: position,material,date,operator,welding parameter and others
4.Stable quality ,long working life, can reduce the loss caused by equipment failure.
5.New touch screen, GPS location, Enter the operating system by swiping card. strictly control welding operation and quality
6.The 4th clamp is separated from the machine facilitate laying operation and the weld of tee fitting, elbow ,flange
7.Heating plate pop-up automatically, no manual operation, reduce operation step, Increase the level of automation
Standard composition:
Machine body,milling cutter,heating plate,Hydraulic control unit,support,tool bag,clamps 63,90,110,160,200,250,315mm.
Single clamps, accurate processing size, can effectively reduce the time of pipeline alignment operation, improve the efficiency of welding.
Model
CNC 355
CNC 400
CNC 500
CNC 630
Working range
160-355mm
250-400mm
315-500mm
400-630mm
Materials
PE/PP/PB/PVDF
PE/PP/PB/PVDF
PE/PP/PB/PVDF
PE/PP/PB/PVDF
Rated voltage
220VAC 50/60HZ
380VAC 50/60HZ
380VAC 50/60HZ
380VAC 50/60HZ
Rated power
5800W
6880W
8500W
10500W
Memory (welding cycles)
4000
4000
4000
4000
Protection degree
IP54
IP54
IP54
IP54
