Description

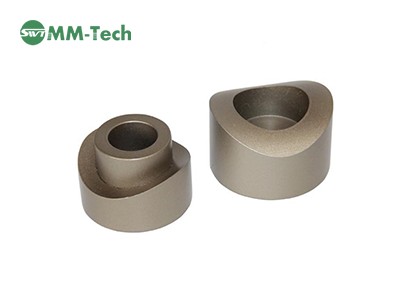

The saddle socket, also known as the saddle fitting, is a crucial component in pipe connection systems. It has distinct features that make it highly efficient. It is designed with precision to ensure a secure and leak - proof connection when joining pipes.
This saddle socket is versatile, catering to a wide range of pipe combinations such as 63/32, 75/40, 160/53, 200/63, and 315/110. These numbers represent the outer diameters of the main pipe and the branch pipe respectively. It is made from high - quality materials, providing durability and resistance to corrosion. The socket's shape allows for easy installation, and its smooth interior surface minimizes flow resistance, making it suitable for various fluid - carrying applications in industries like plumbing, irrigation, and industrial piping systems.
| The size as following | ||||
| 63/32 | 75/32 | 90/32 | 110/32 | 125/32 |
| 160/32 | 200/32 | 250/32 | 90/40 | 110/40 |
| 125/40 | 160/40 | 200/40 | 250/40 | 110/50 |
| 125/50 | 160/50 | 200/50 | 250/50 | 125/63 |
| 160/63 | 200/63 | 250/63 | 315/63 | 160/75 |
| 200/75 | 250/75 | 315/75 | 200/90 | 250/90 |
| 315/90 | 200/110 | 250/110 | 315/110 | 250/125 |
| 315/125 | 315/160 | |||
