Description

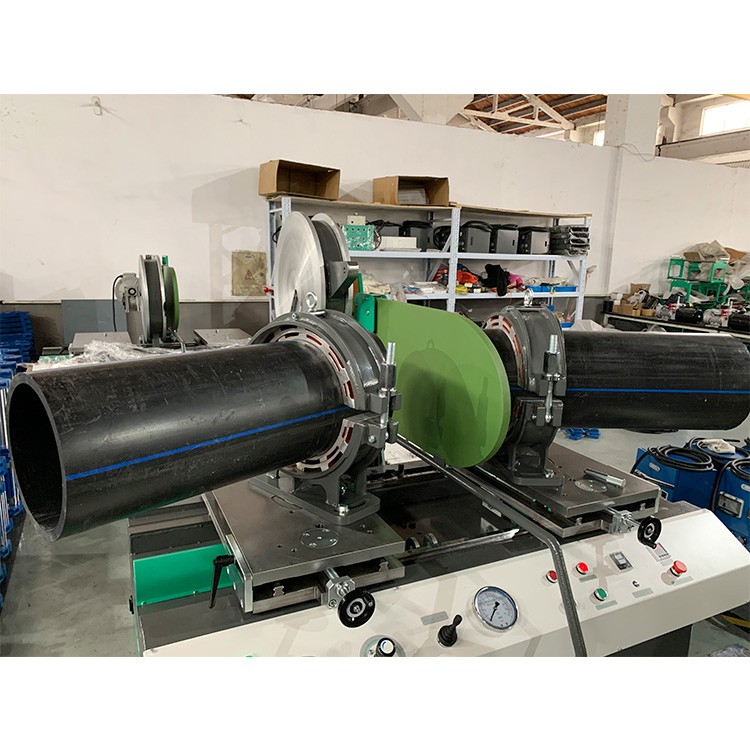

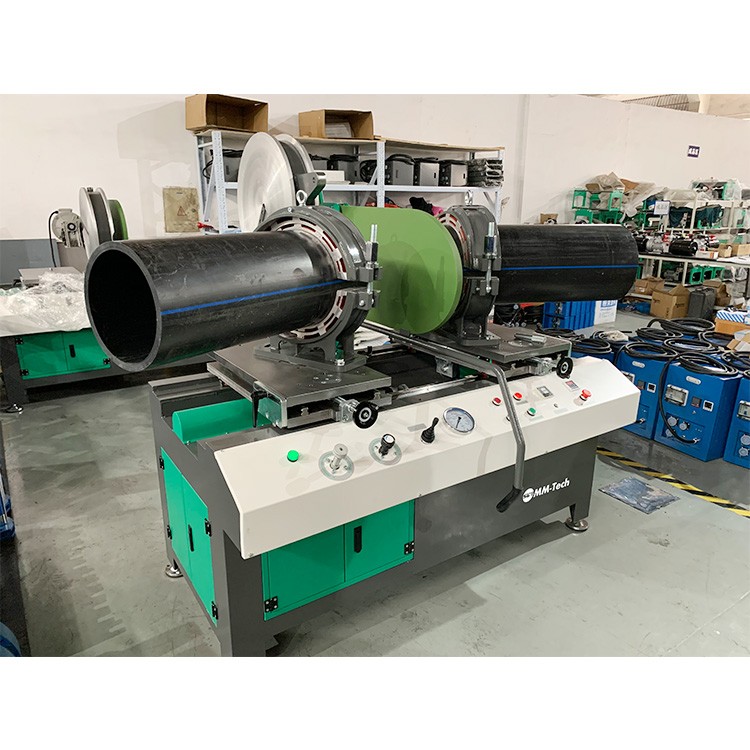

SWT-MA400 Workshop Fitting Welding Machine include:
*A machine body with two working tables, both driven by hydraulic system;
*A operation panel with manual control;
*A milling cutter with gas spring, easier to lift up and down;
*A Teflon coated heating plate with steel cover, to make operator in safe;

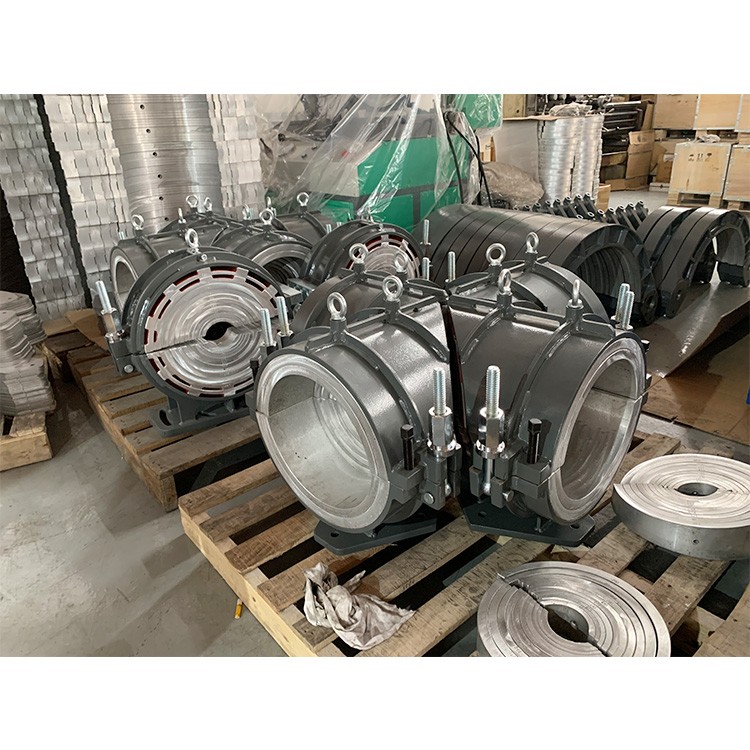

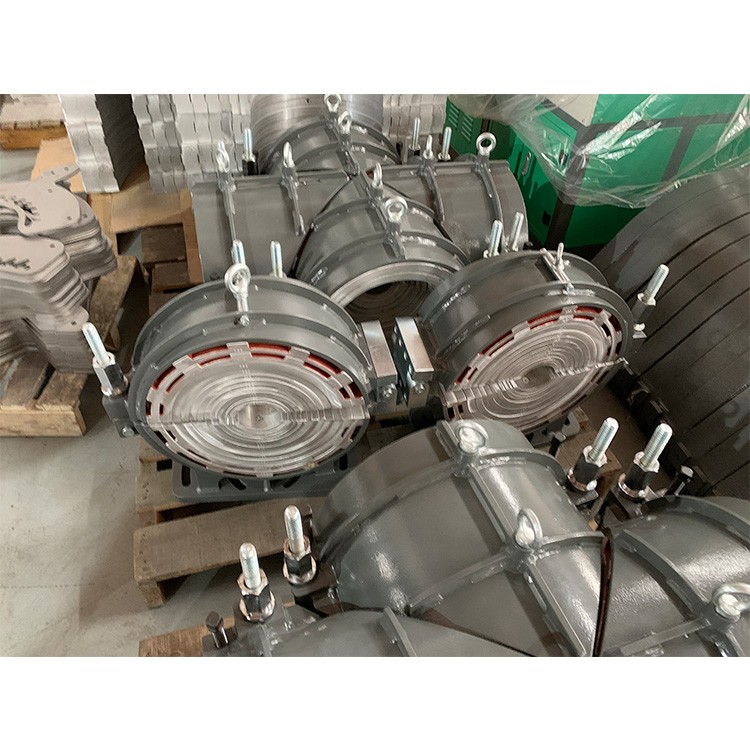

*With full set of aluminum inserts and steel clamps, which make fittings elbows, tees and crosses.
Available options:
Wyes clamps φ400(45°and 60°): inserts from 90mm to 400mm
Imperial inserts
Clamps for welding flange necks
Data logger
FEATURES
| Model | SWT-MA315/90 | SWT-MA400/90 |
| Elbow | OD90-315mm | OD90-400mm |
| Tee | OD90-315mm | OD90-400mm |
| Crosses | OD90-315mm | OD90-400mm |
| Wyes | OD90-315mm | OD90-400mm |
| Welding Material | HDPE-PP-PVDF | HDPE-PP-PVDF |
| Voltage | 380V±10%, 50/60Hz | 380V±10%, 50/60Hz |
| Total Power | 7.5Kw | 7.5Kw |
*For more specifications, please contact our sales.
