ZRJQ-160A Suspending Socket Fusion Tool

Description

Machine Feature

1.According to different pipe material to adjust the corresponding temperature , the temperature indicate on the digital display screen.
Increased flexibility and combination options for everyday use.
2.Electronic intelligent control system , it can realize automatic temperature compensation.

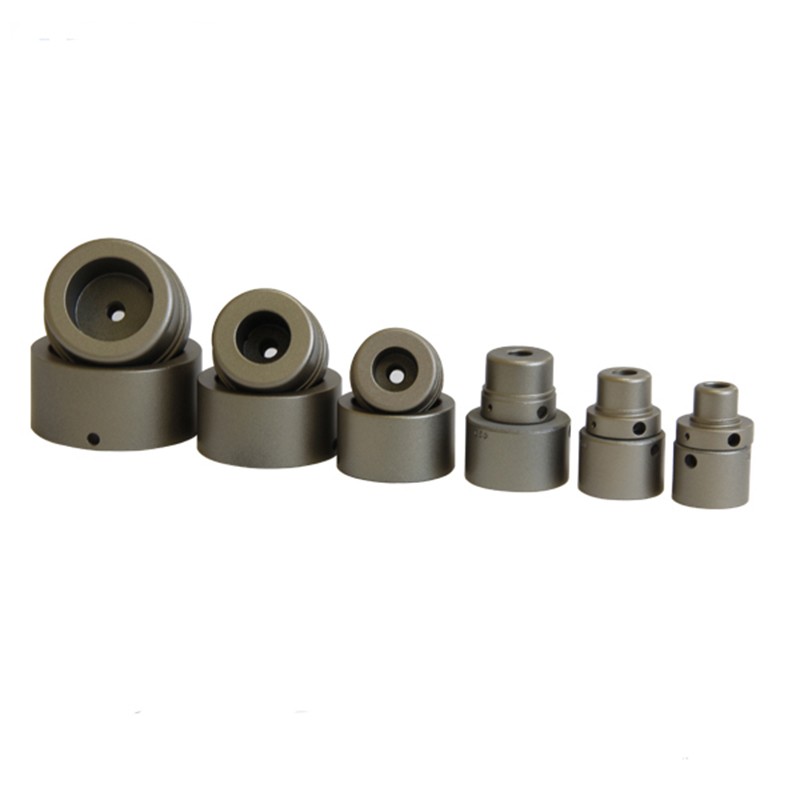

3. Sockets with Japanese Daikin polyflon PTFE coating , for longer lifetime and great fusion effect.
4.Reinforced nylon handles , it’s more comfortable.
5.Heating interval signal lights
6.Two kinds removable supporting stand is available at all times.
7.A set of dedicated wrench convenient to use and carry
8.1mm Thickened steel box , it will not broken after long time used.
9.In case the intelligent control device failure, there is the warning temperature.
The warning temperature is based on setting temperature plus 30°C. When it happen , the heating panel will stop heating.
( For example , if your setting temperature is 260°C , the warning temperature is 290°C).

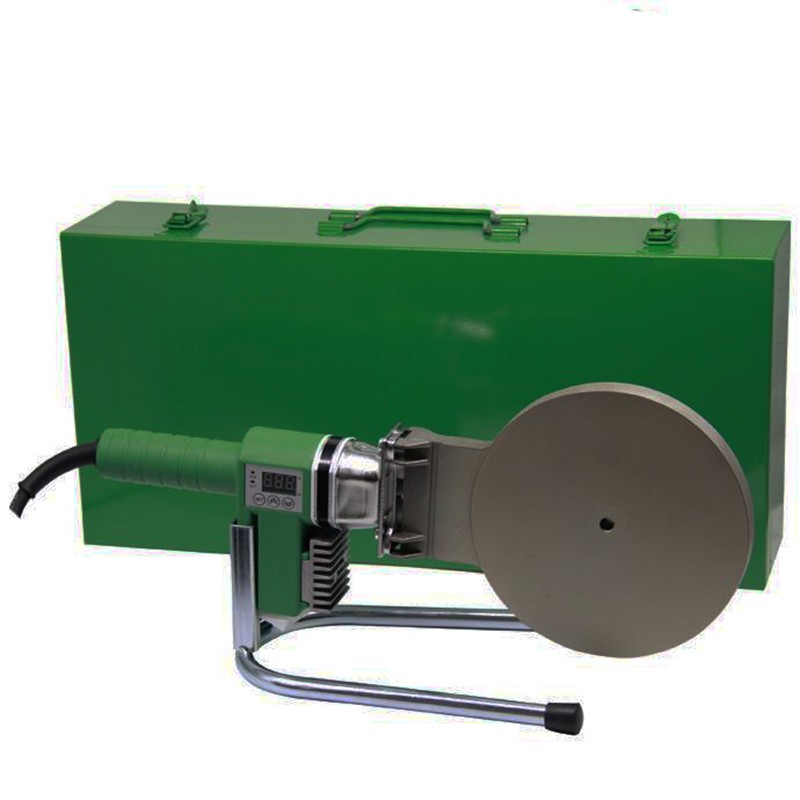

Machine heater plate surface is paint with teflon and can butt fusion direclty or install sockets for socket fusion.

1.Make sure that socket, pipes, heating sockets and heating spigots are clean and free of grease.

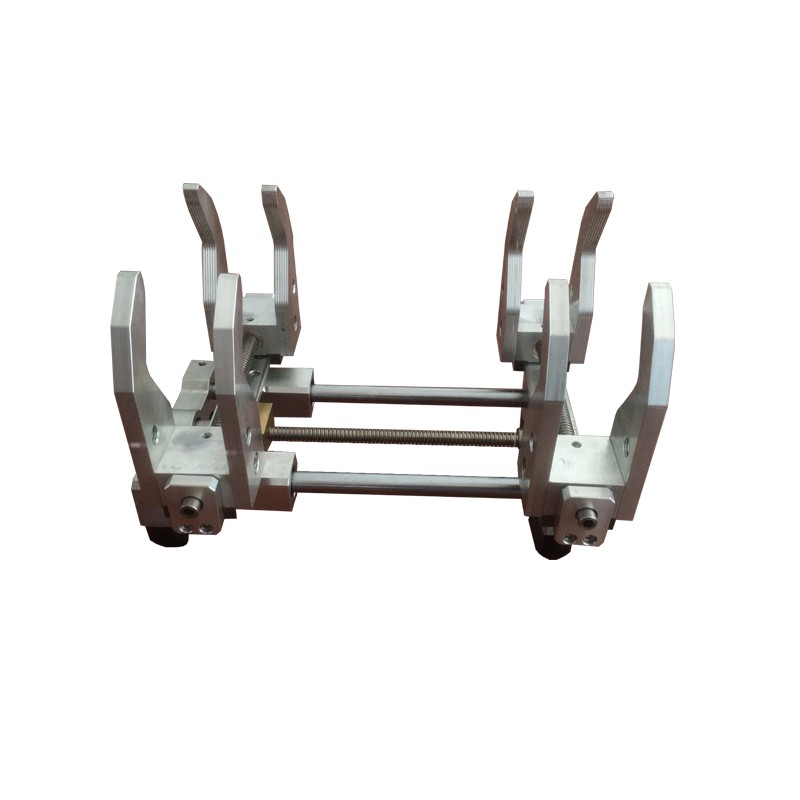

2.Open one clamping tool with flat wrench SW 10 or optionally with the handwheel resp.
Cordless screwdriver and wrench insert SW 10.
Insert the socket and close the clamping tool.
Clamp the socket tightly in a way that it cannot slip through.
But keep in mind that it must not be deformed either.
3.Open the second clamping tool with flat wrench SW 10 or optionally with the handwheel resp.
cordless screwdriver and wrench insert SW 10.

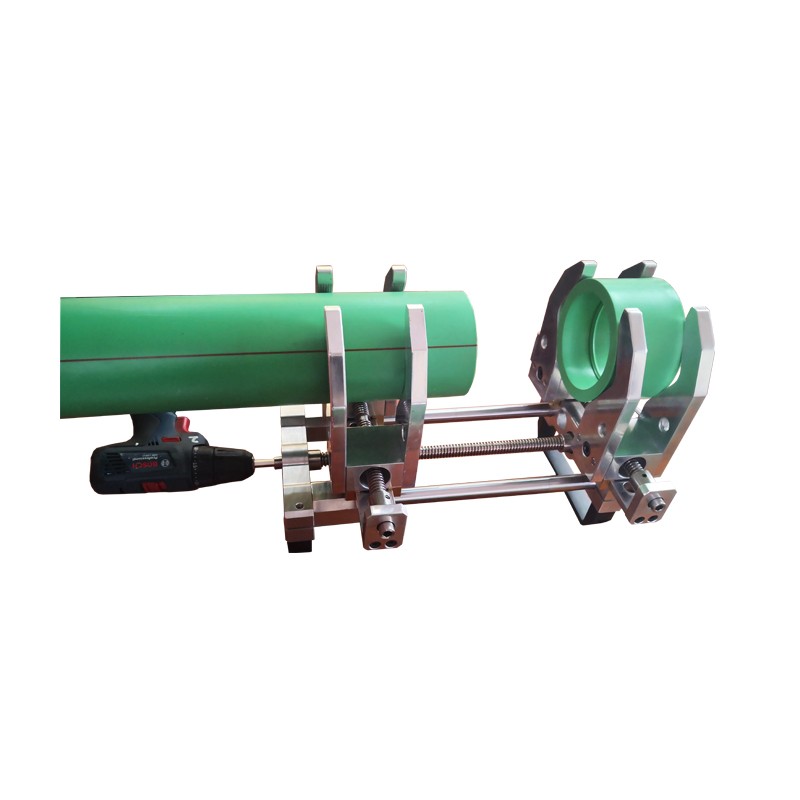

Insert the pipe with enough overhang to the inside and close the clamping tool.
4.Bring the heated hand heating element between the workpieces.
5.Drive the flexible clamping tool towards the fix clamping tool
until heating socket and spigot have reached the prescribed insertion depth.
