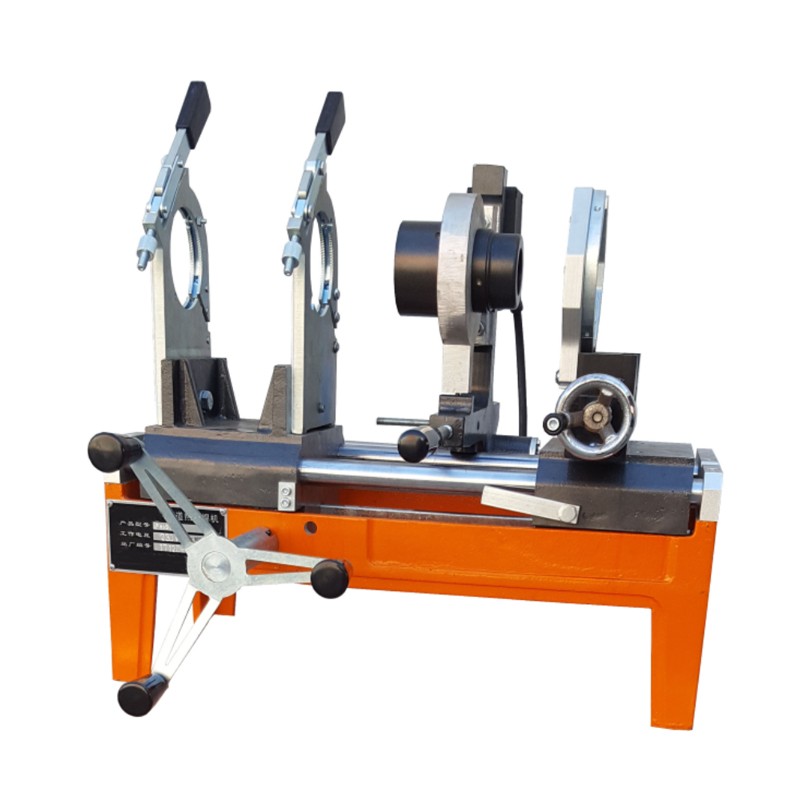

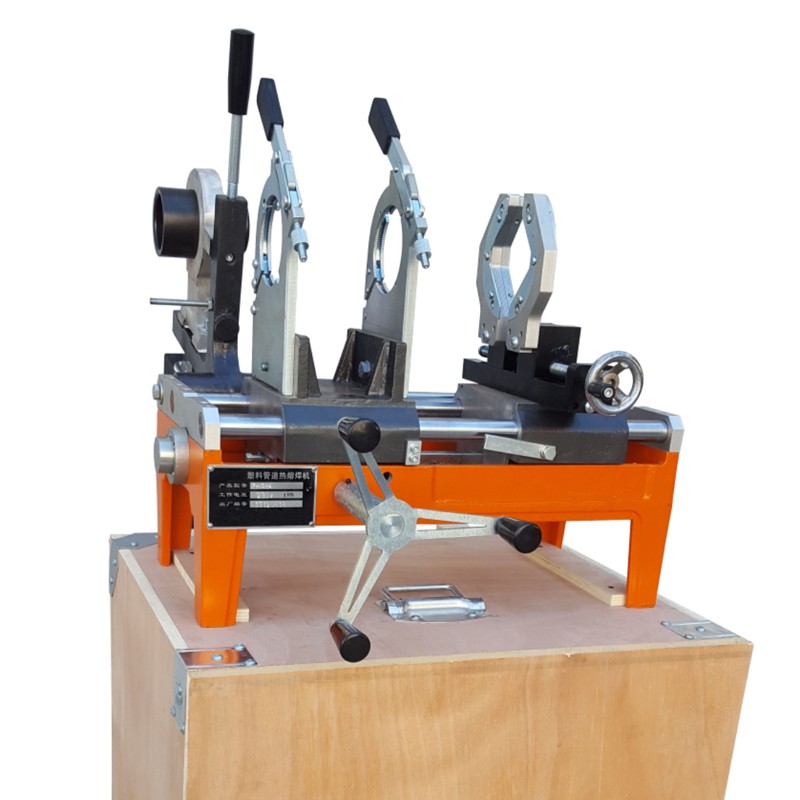

Description
Accurately control the welding depth of different pipes and fittings
Accurate control the depth that pipe insert fittings
The diameter selector can avoid over-melting caused by excessive force when pipes are inserted into pipes
Mechanical operation makes each welding interface Standardization ,improve welding quality."

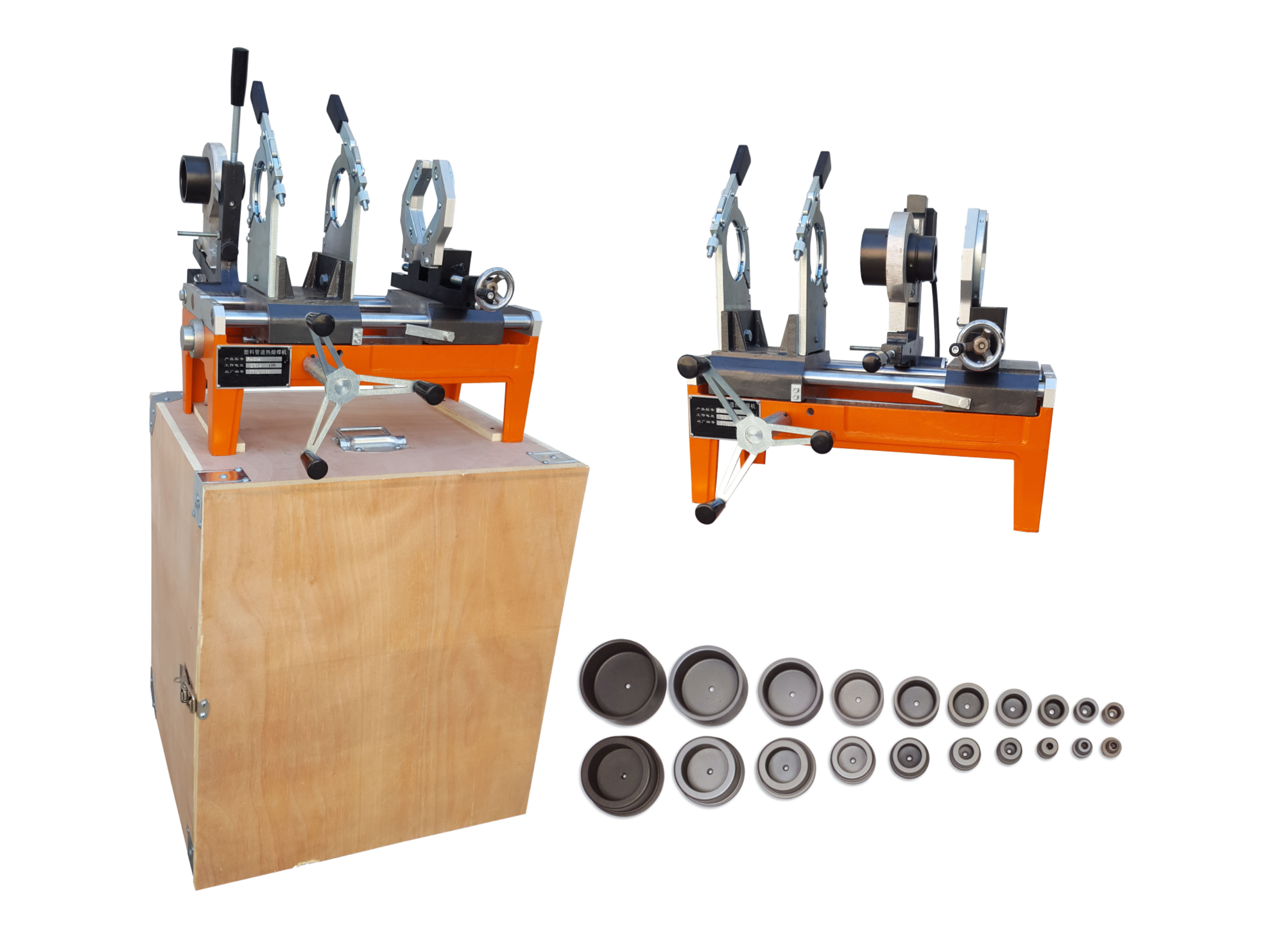

Standard composition:

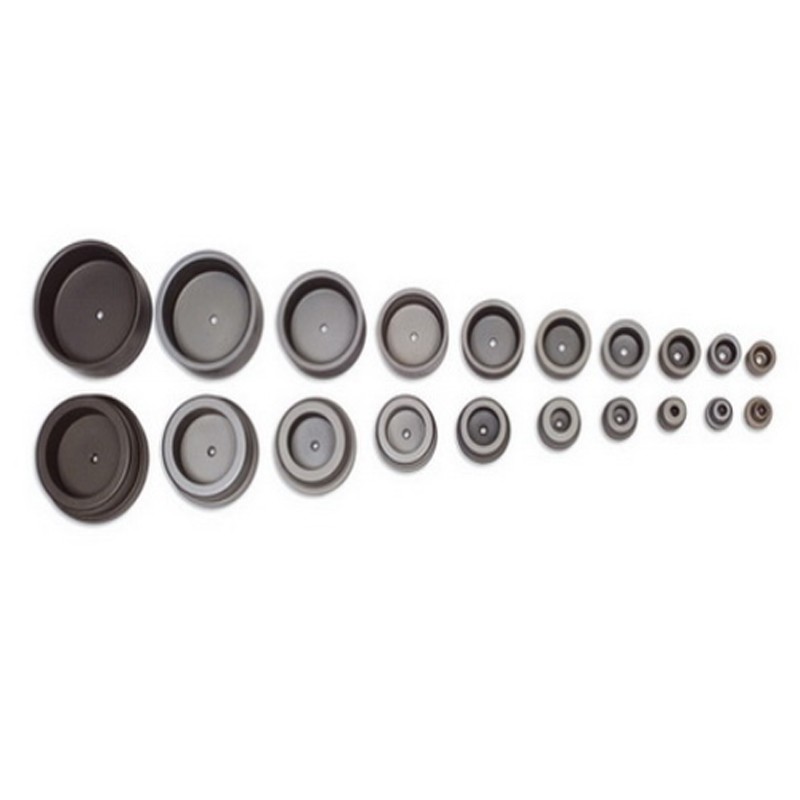

Machine body,heating plate,tool kit,20,25,32,40,50,75,63,90,110,125,140,160mm sockets and spigots
On request:
Pipe support tripod
Accurate control the depth that pipe insert fittings
The diameter selector can avoid over-melting caused by excessive force when pipes are inserted into pipes
Mechanical operation makes each welding interface Standardization ,improve welding quality."
Standard composition:
Machine body,heating plate,tool kit,20,25,32,40,50,75,63,90,110,125,140,160mm sockets and spigots
On request:
Pipe support tripod
Specification Data
| Model | TSC-90 | TSC-125 |
| Working range | 20-90mm | 20-125mm |
| Materials | PE/PP/PVDF | PE/PP/PVDF |
| Rated power | 900W | 1400W |
| Rated voltage | 220VAC /50HZ | 220VAC /50HZ |
| Dimension (mm) | 630*700*570mm | 630*700*570mm |
| Frame weight | 32Kg | 33Kg |
| NW/GW | 40/60Kg | 53/73Kg |
