Description

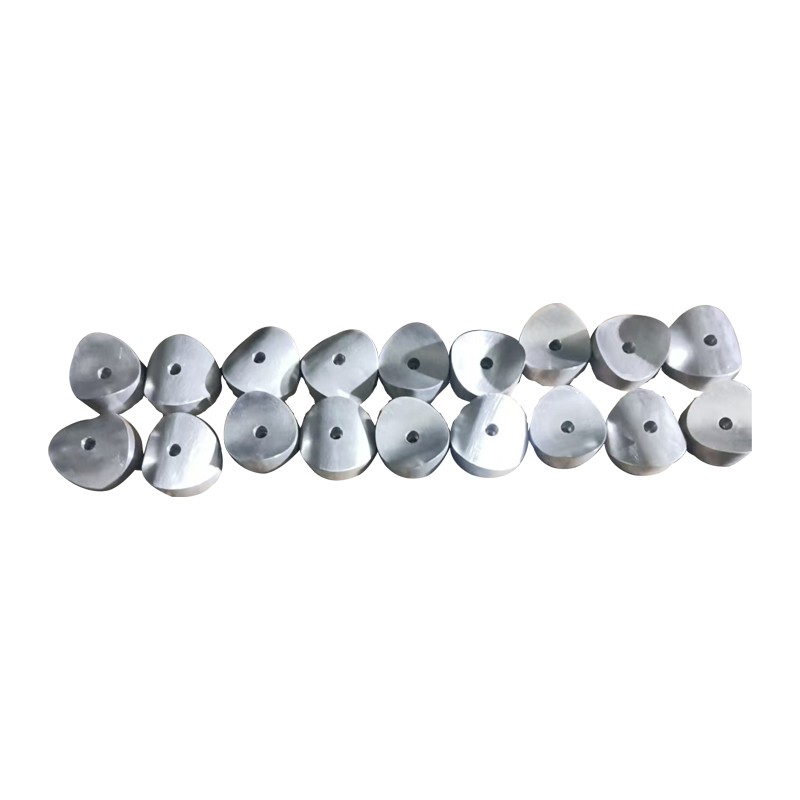

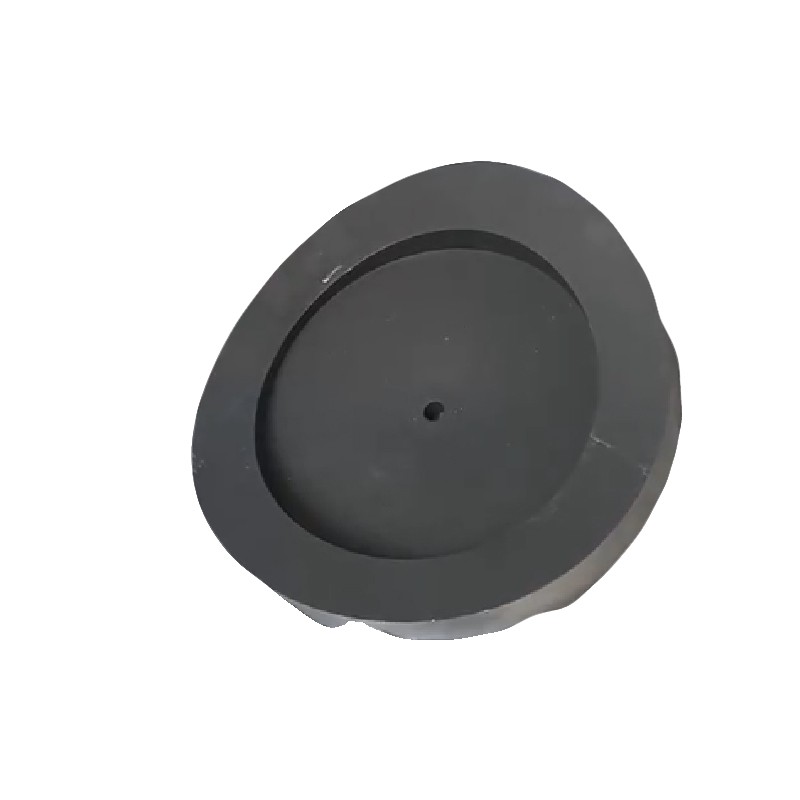

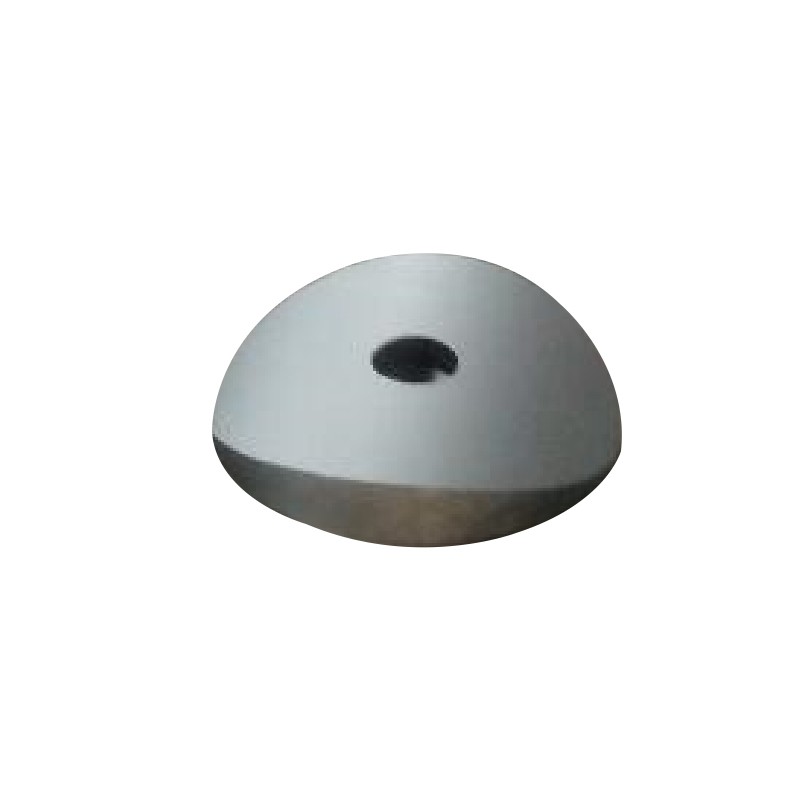

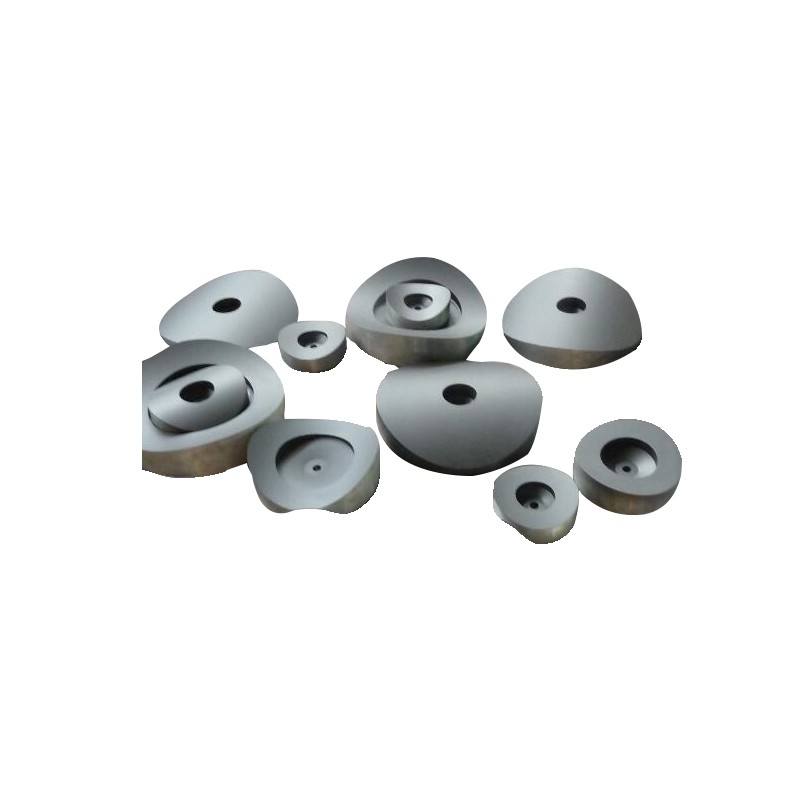

A butt-joint saddle die is a tool specifically designed for butt welding saddle fittings to pipes. Its specific structure and shape create a reliable connection between pipes through heat and melting, making it a crucial die device in pipe joining processes.
It is primarily used for welding pipes made of materials such as PE. In industries such as municipal engineering, chemical engineering, and telecommunications and electrical engineering, saddle welding techniques are often employed when converting large-diameter pipes to smaller ones. This is where butt-joint saddle dies are essential. They are also widely used in other applications where saddle fittings need to be joined to pipes, ensuring the quality and stability of the pipe system connection.
| The size as following | ||||
| 40/25 | 50/25 | 63/25 | 75/25 | 90/25 |
| 110/25 | 125/25 | 160/25 | 63/32 | 75/32 |
| 90/32 | 110/32 | 125/32 | 160/32 | 200/32 |
| 250/32 | 90/40 | 110/40 | 125/40 | 160/40 |
| 200/40 | 250/40 | 110/50 | 125/50 | 160/50 |
| 200/50 | 250/50 | 20/63 | 125/63 | 160/63 |
| 250/63 | 315/63 | 160/75 | 200/75 | 250/75 |
| 315/75 | 200/90 | 250/90 | 315/90 | 200/110 |
| 250/110 | 315/110 | 250/125 | 315/125 | 315/160 |
| 225/140 | 160/140 | 250/160 | 180/160 | 300/150 |
