Description

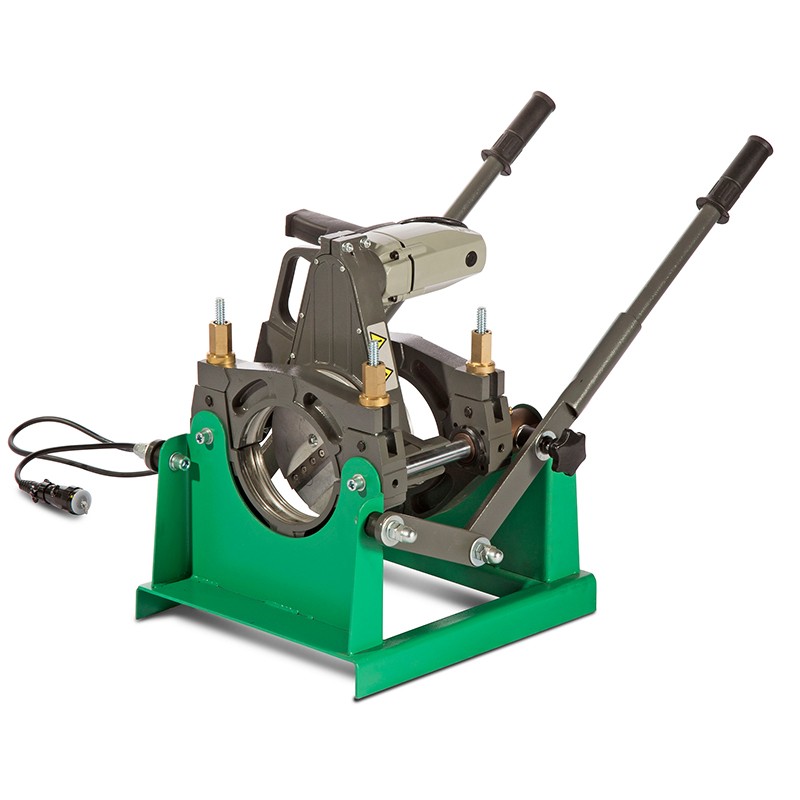

SWT-V200/63M Manual Butt Fusion Machine
DESCRIPTIONSWT-V200M is manual butt fusion welder for pipes up to 160mm.
With compact and portable design,it will enable operators to work in the complicated condition.
The heating plate with digital display help operator reading the temperature in precise and convenient way.
It is suitable for welding plastic pipe and fittings made of HDPE,PP,PVDF.

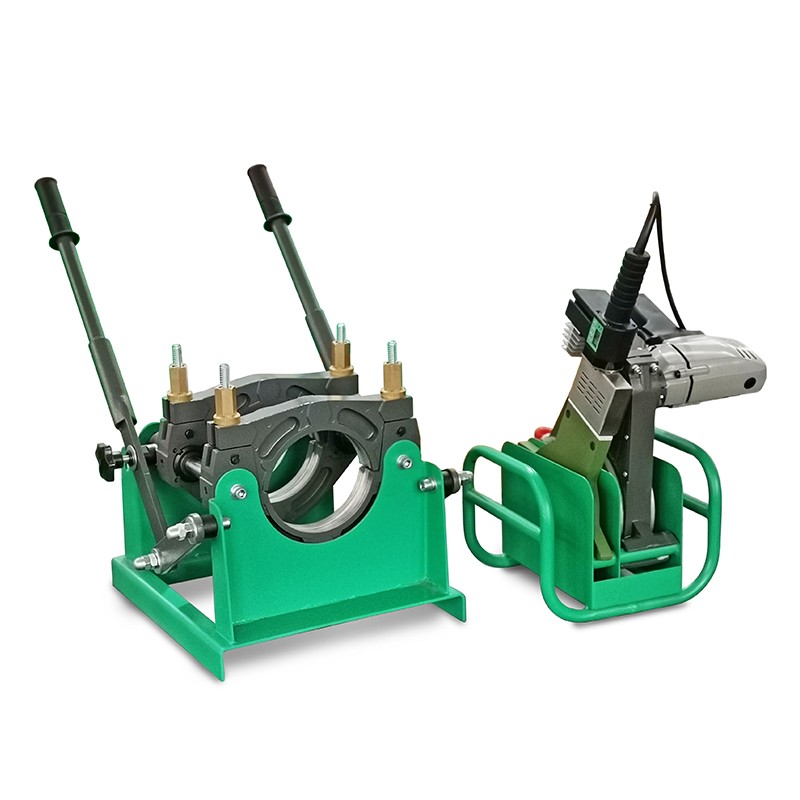

SWT-V160M includes:

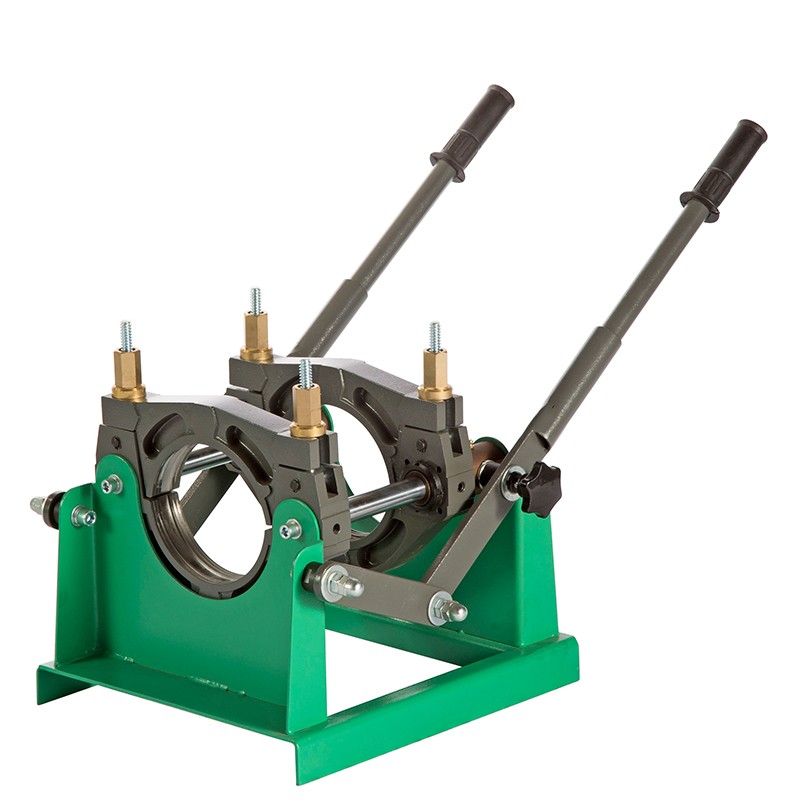

*A machine body with 2 aluminum made clamps;

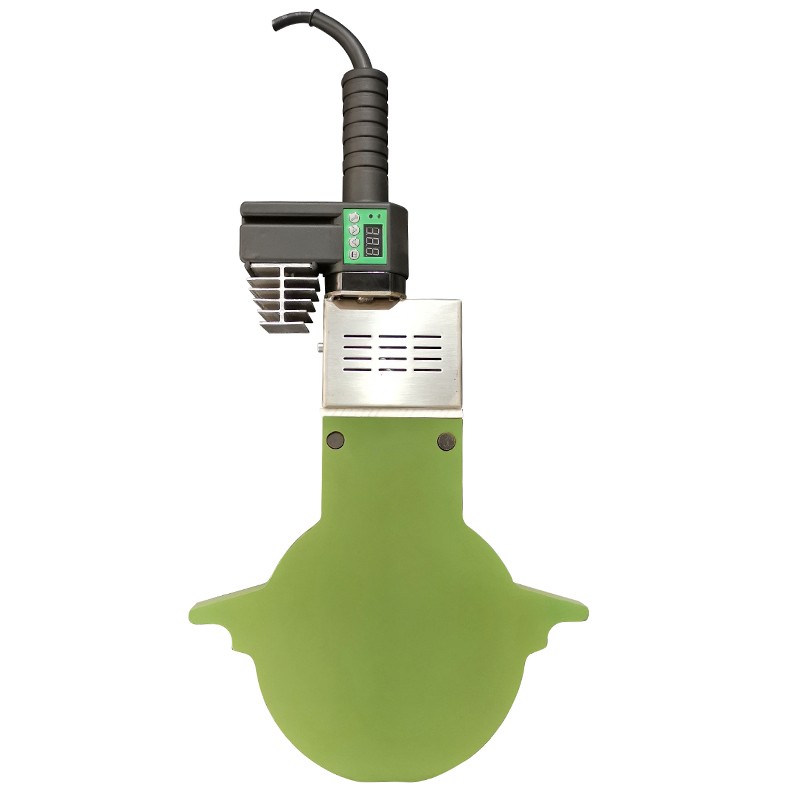

*A Teflon coated heating plate with digital display, equipped with friendly handler;
*A electrical milling cutter;
*Support for milling cutter and heating plate.
FFEATURES
| Welding Range | 63mm～200mm |
| Temperature Range | 0℃～270℃ |
| Temperature variable | ±5℃ |
| Power of Heating Plate | 1.2KW/220V |
| Power of Planning Tool | 1.1KW/220V |
| Power Supply | 220V, 50Hz |
| Total weight | 75kg |
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty:24months.
Any parts broken or does not work under normal operating,we are free to provide.
