SWT-MA630 CNC Fitting Fabrication Machine

  • Product Item:SWT-MA630
  • Welding Range:315-630mm
  • Make Elbow,Tee,Cross
  • Voltage:380/415V 3P50/60Hz
  • SWT-MA630 CNC Fitting Fabrication Machine
    Inquiry Send Email

    Description

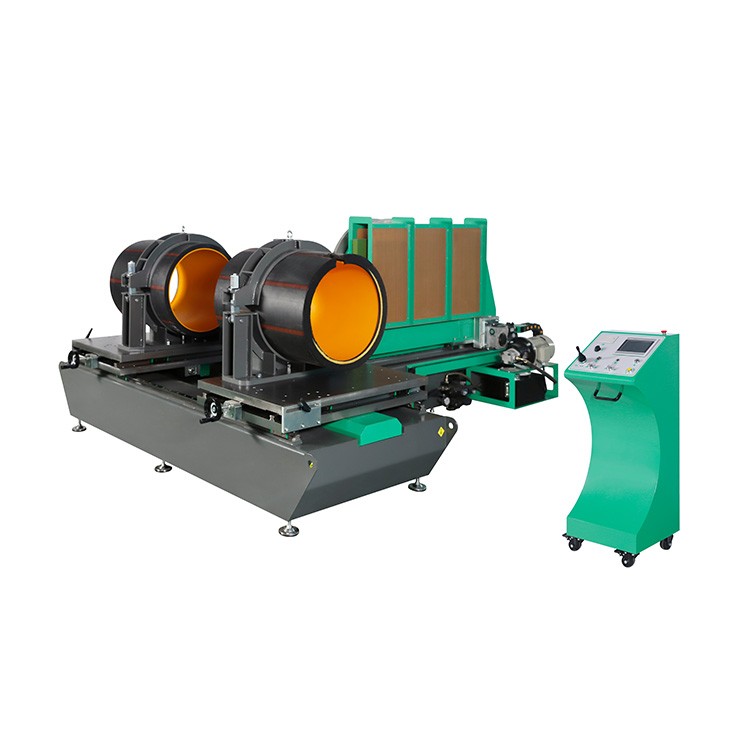

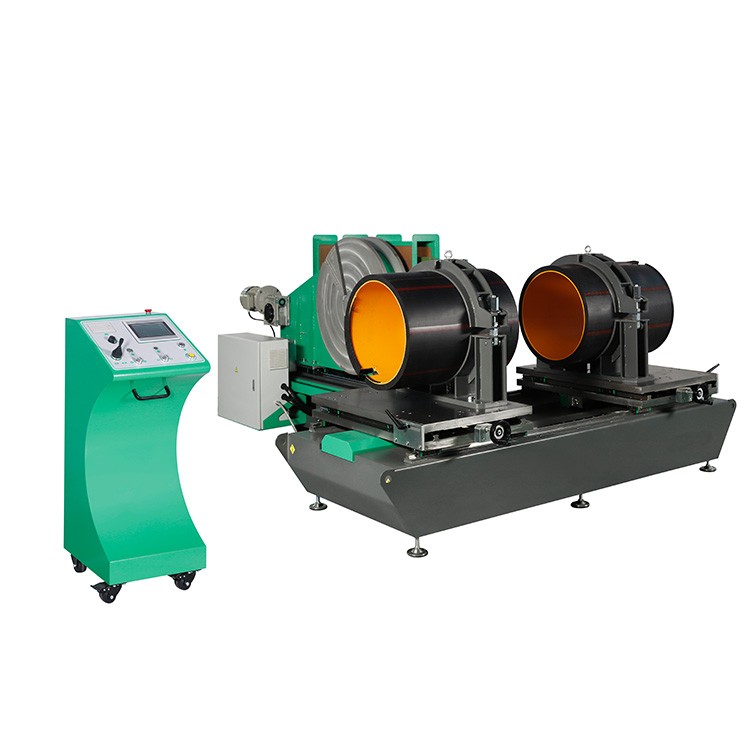

    SWT-MA630 CNC Fitting Fabrication Machine includes:

    *A machine body with two working tables, both driven by hydraulic system;

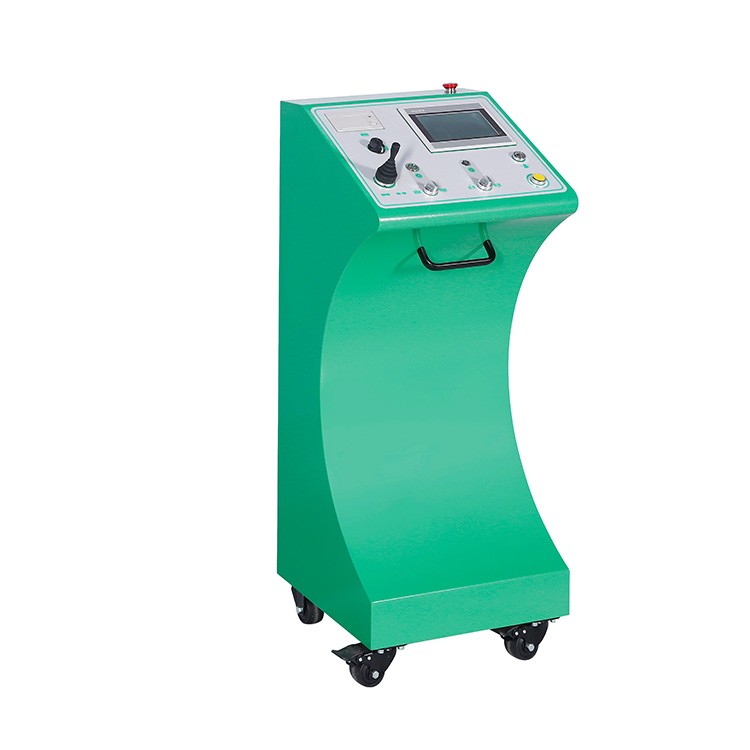

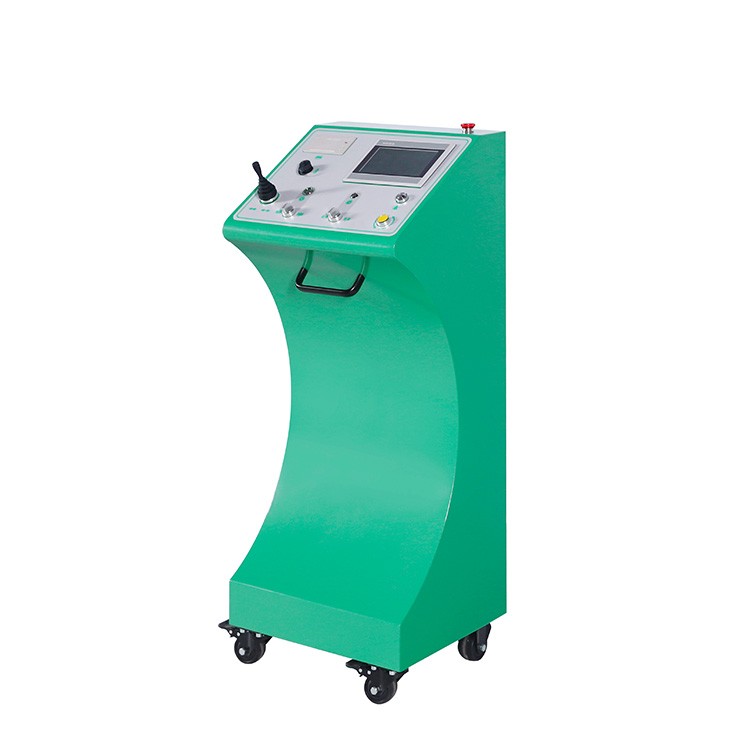

    *A operation panel with automatically control system makes whole welding process in a simple, efficient and precise way. After setting the welding data (SDR, Pipe diameter, Standard requirement ), the welding machine will start welding automatically, so that the operator`s could mainly focus on the welding process, stay away from other interference. And the build-in memory could record welding process and report it to the operator by transferring the data from operation panel to computer by USB connection, or automatically read out by connecting a printer;

    *A milling cutter with hydraulic movement in/out, started by a electrical motor;

    *A Teflon coated heating plate with hydraulic movement in/out;

    *With full set of aluminum inserts and steel clamps, which make fittings elbows, tees and crosses.

    Available options:

    Wyes clamps φ630 (45°and 60°): inserts from 315mm to 630mm

    Clamps for welding flange necks

    Imperial inserts

    Hydraulic open/close elbows clamp

    Hydraulic open/close tees and crosses clamp

    Hydraulic locking
    FEATURES

    Model SWT-MA630 CNC
    Elbow OD315-630mm
    (0°-90°)
    Tee OD315-630mm
    Crosses OD315-630mm
    Wyes OD315-630mm
    (45°and 60°)
    Welding Material HDPE-PP-PVDF
    Voltage 380V±10%, 50/60Hz
    Total Power 34.2Kw

    *For more specifications, please contact our sales.
