Description

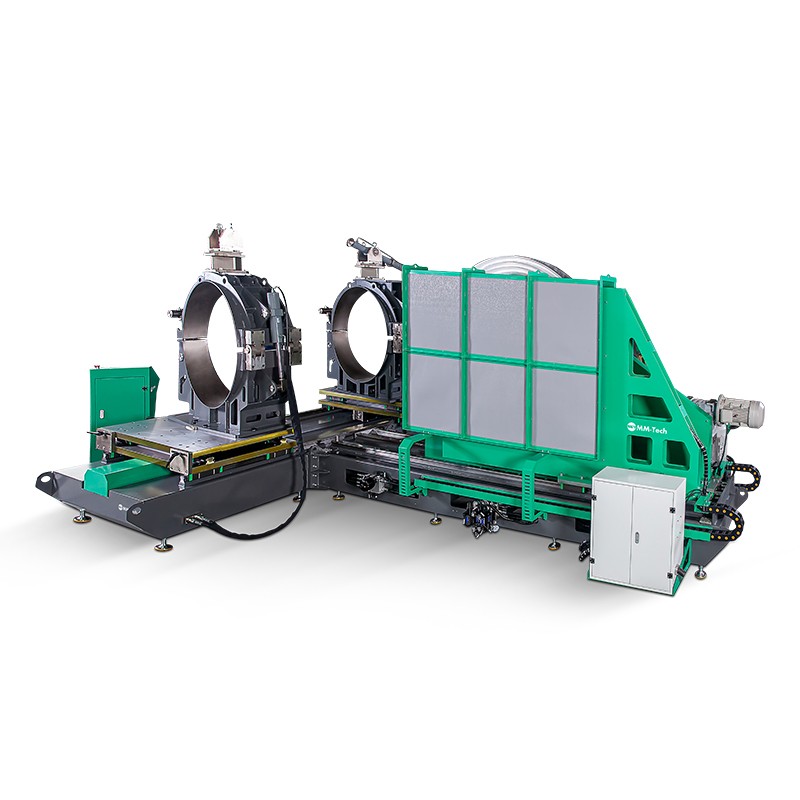

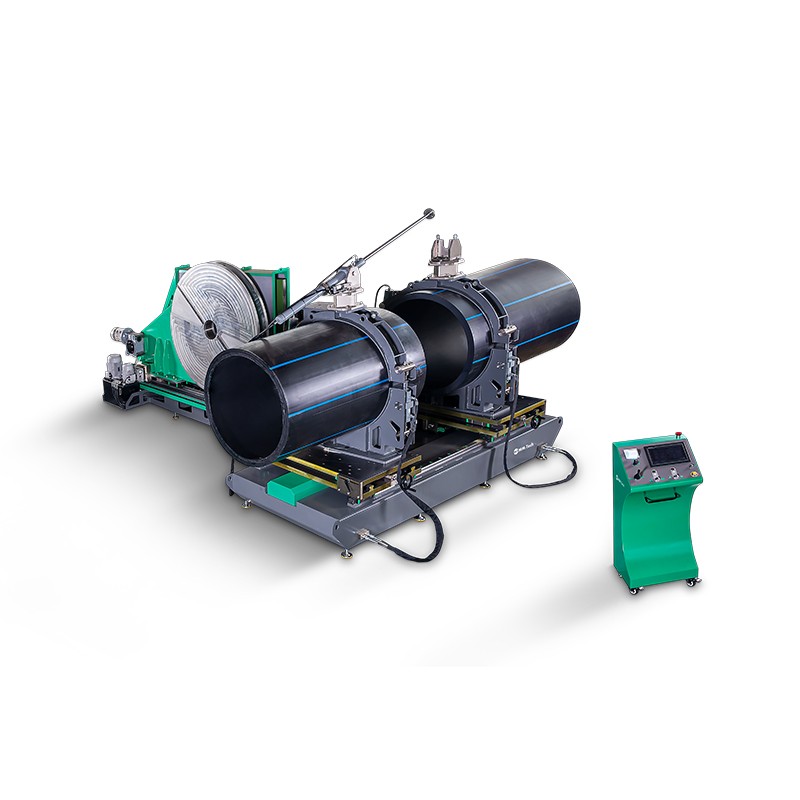

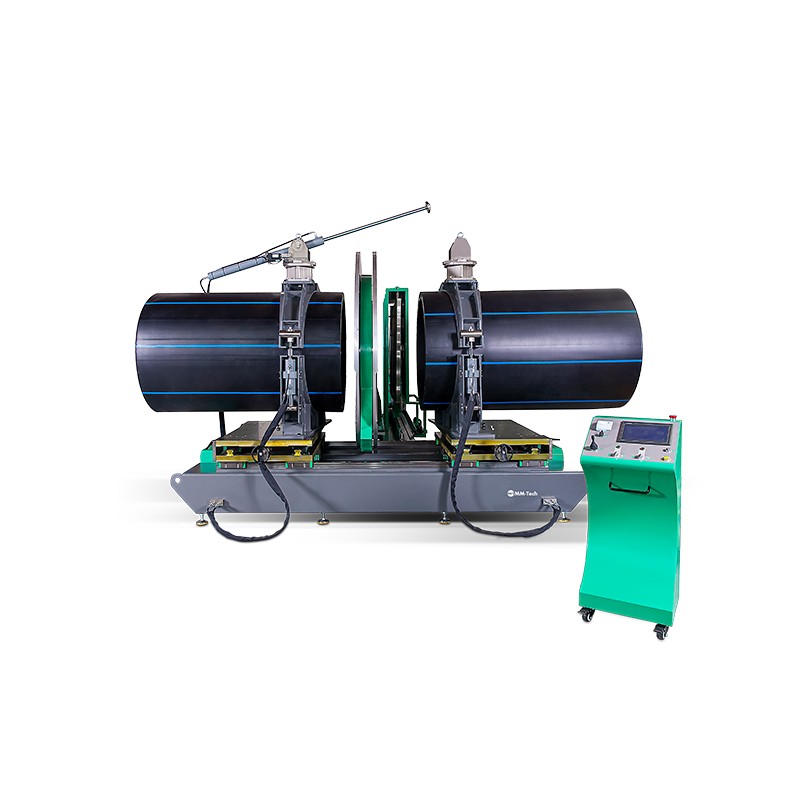

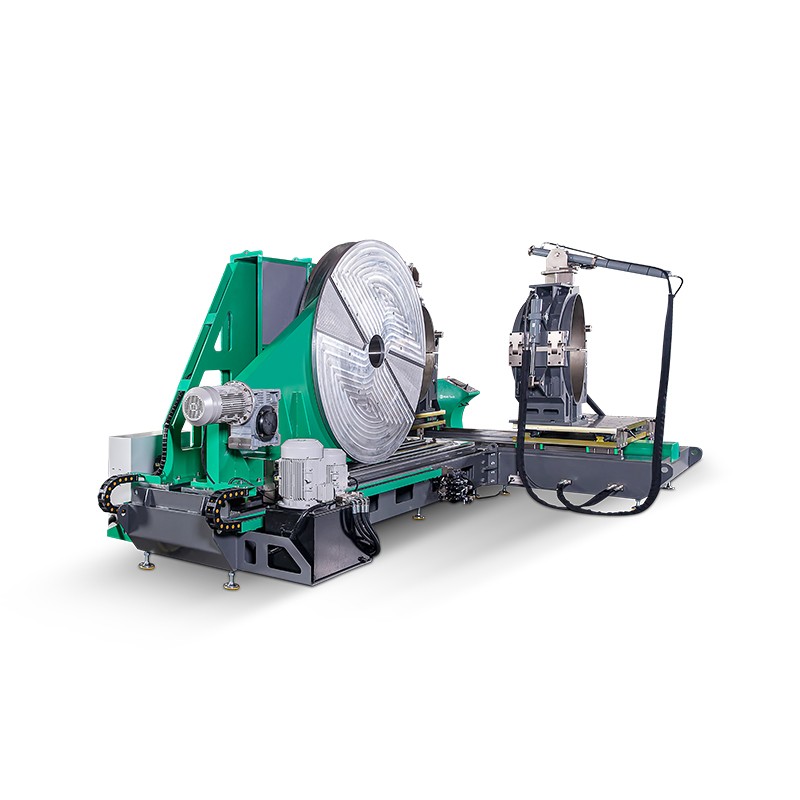

SWT-MA800 Workshop Fitting Fabrication Welding Machine
includes:
*A machine body with two working tables, both driven by hydraulic system;
*A operation panel with automatically control system makes whole welding process in a simple, efficient and precise way. After setting the welding data (SDR, Pipe diameter, Standard requirement ), the welding machine will start welding automatically, so that the operator`s could mainly focus on the welding process, stay away from other interference. And the build-in memory could record welding process and report it to the operator by transferring the data from operation panel to computer by USB connection, or automatically read out by connecting a printer;
*A milling cutter with hydraulic movement in/out, started by a electrical motor;
*A Teflon coated heating plate with hydraulic movement in/out;
*With full set of aluminum inserts and steel clamps, which make fittings elbows, tees and crosses.
Available options:
Wyes clamps φ800 (45°and 60°): inserts from 450mm to 800mm
Clamps for welding flange necks
Imperial inserts
Hydraulic open/close elbows clamp
Hydraulic open/close tees and crosses clamp
Hydraulic locking
FEATURES
| Model | SWT-MA800/450 CNC |
| Elbow |
OD450-800m m(0°-90°) |
| Tee | OD450-800mm |
| Crosses | OD450-800mm |
| Wyes |
OD450-800mm (45°and 60°) |
| Welding Material | HDPE-PP-PVDF |
| Voltage | 380V±10%, 50/60Hz |
| Total Power | 54.5Kw |
*For more specifications, please contact our sales.
