Description
Fusion by bar code reading/by manual introduction of bar code/by manual introduction of tension and fusion time
The smart scanning gun can be used to identify the bar codes of most pipe factories at home and abroad
Inbuild memory with 4000 welding cycles,Data can be download to laptop by usb or print on worksite
Automatic temperature compensation according to environment temperature
Universal connector 4-4.7mm,whether the connector is good or not is directly related to the quality of welding, must replace in time
Intelligent design, when the machine fails, it will show the error.
(Like supply voltage,output current,ambient temperature),under voltage or over-voltage may cause under-melt or over-melt

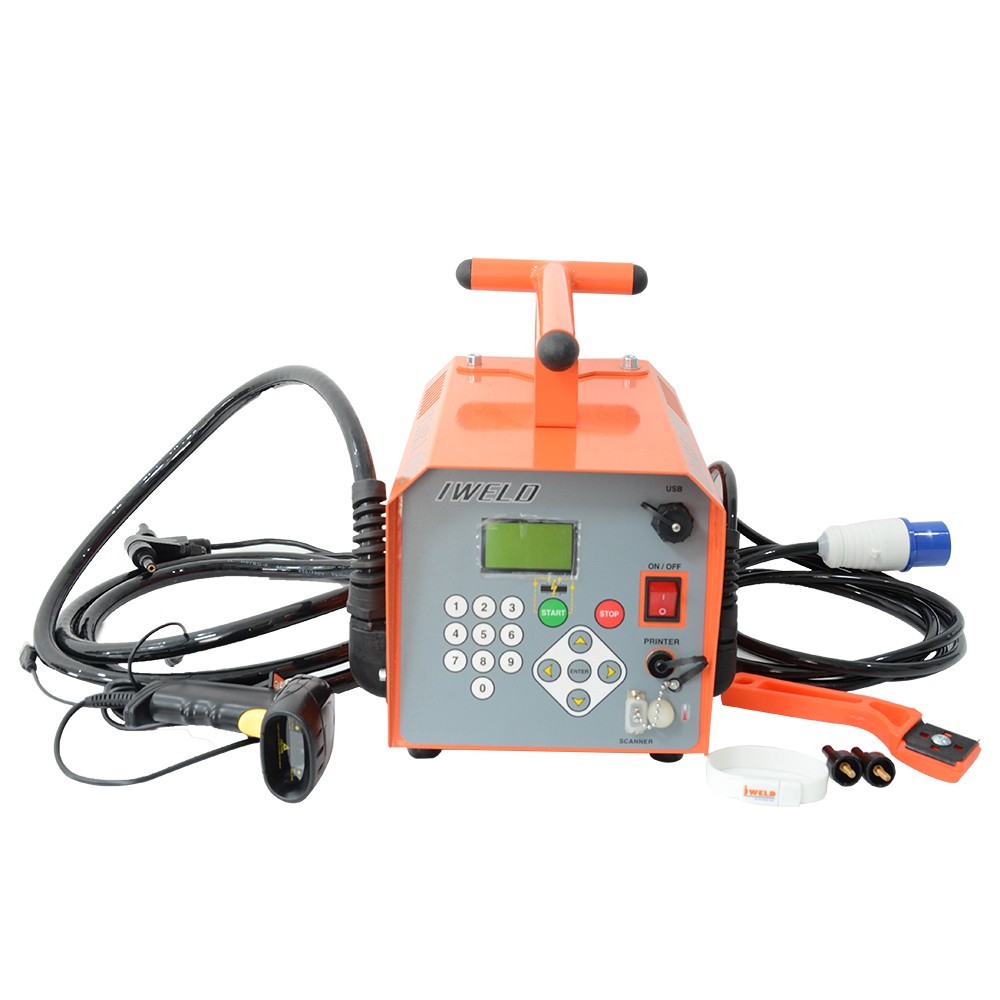

Standard Configuration:
machine body
scanner
manual scraper
transport case
4.7*4.0 connectors
On request:
The smart scanning gun can be used to identify the bar codes of most pipe factories at home and abroad
Inbuild memory with 4000 welding cycles,Data can be download to laptop by usb or print on worksite
Automatic temperature compensation according to environment temperature
Universal connector 4-4.7mm,whether the connector is good or not is directly related to the quality of welding, must replace in time
Intelligent design, when the machine fails, it will show the error.
(Like supply voltage,output current,ambient temperature),under voltage or over-voltage may cause under-melt or over-melt
Standard Configuration:
machine body
scanner
manual scraper
transport case
4.7*4.0 connectors
On request:
printer
Technical Feature:
Model
ZDRJ200
ZDRJ 315
ZDRJ 400
ZDRJ 630
ZDRJ 800
Working range
20-160mm
20-315mm
20-400mm
20-630mm
20-1200mm
Materials
HDPE-PPR
HDPE-PPR
HDPE-PPR
HDPE-PPR
HDPE-PPR
Dimensions
358*285*302
358*285*302
358*285*302
368*290*310
370*300*320
Weights
21KG
23KG
23KG
25KG
25KG
Rated voltage
220VAC-50/60Hz
220VAC-50/60Hz
220VAC-50/60Hz
220VAC-50/60Hz
220VAC-50/60Hz
Rated power
2700W
2700W
2700W
2700W
3500W
Working temperature
.-10°C-40°C
.-10°C-40°C
.-10°C-40°C
.-10°C-40°C
.-10°C-40°C
Output voltage
8-44V
8-44V
8-44V
8-48V
8-48V
Max. output current
80A
80A
80A
100A
120A
Protection degree
IP54
IP54
IP54
IP54
IP54
Connectors
4.7/4.0
4.7/4.0
4.7/4.0
4.7/4.0
4.7/4.0
Memory
4000
4000
4000
4000
4000
