Description

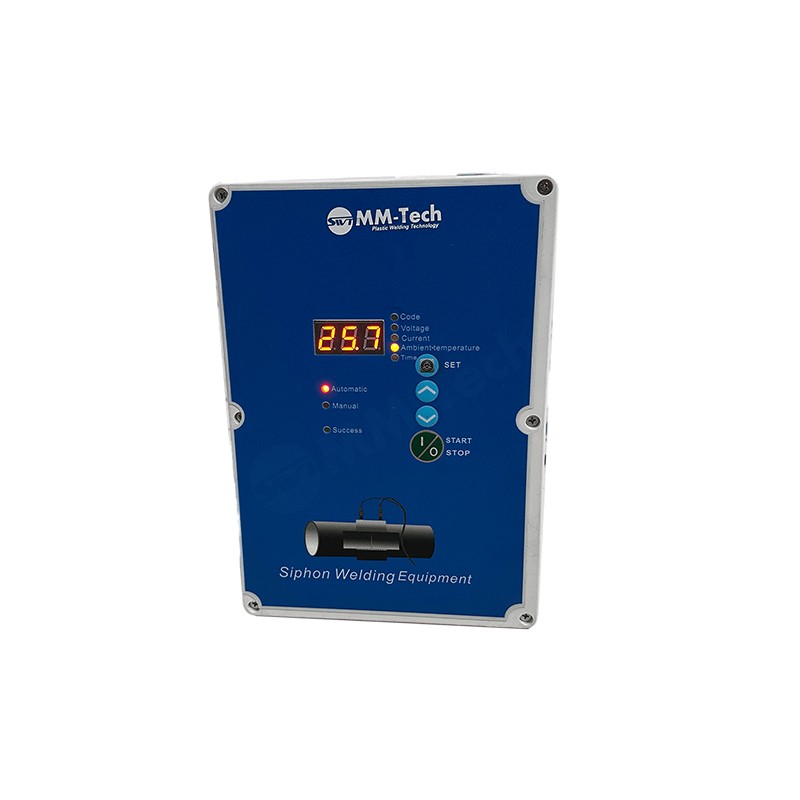

The SIPHON 160 & SIPHON 315 is a welder that uses electrically-induced melting for jointing polyethylene (PE) drain pipes and/or fittings by means of electro-weldable polyethylene (PE) couplings. It can handle four different types of welding, depending on the type of coupling involved. The coupling is recognized by the machine by means of the cable, which is selected by the operator from among the four different-color options available.
MODEL
SIPHON 160
SIPHON 315
WELDING RANGE
32-160MM
32-315MM
OVERALL WEIGHT
5.5kg
6kg
OVERALL SIZE
280*260*200 mm
280*260*200 mm
POWER SUPPLY
230V, 50-60Hz
230V, 50-60Hz
MAX POWER ABSORBED
2470W
2470W
AMBIENT TEMPERATURE PROBE
Electronic
Electronic
WATER AND DUST PROTECTION GRADE
IP55
IP55
STANDARD ACCESSORIES
Trevira carrier bag, welding extension cable, 4 welding cables with plug, power cable, use and maintenance handbook enclosure
