Description

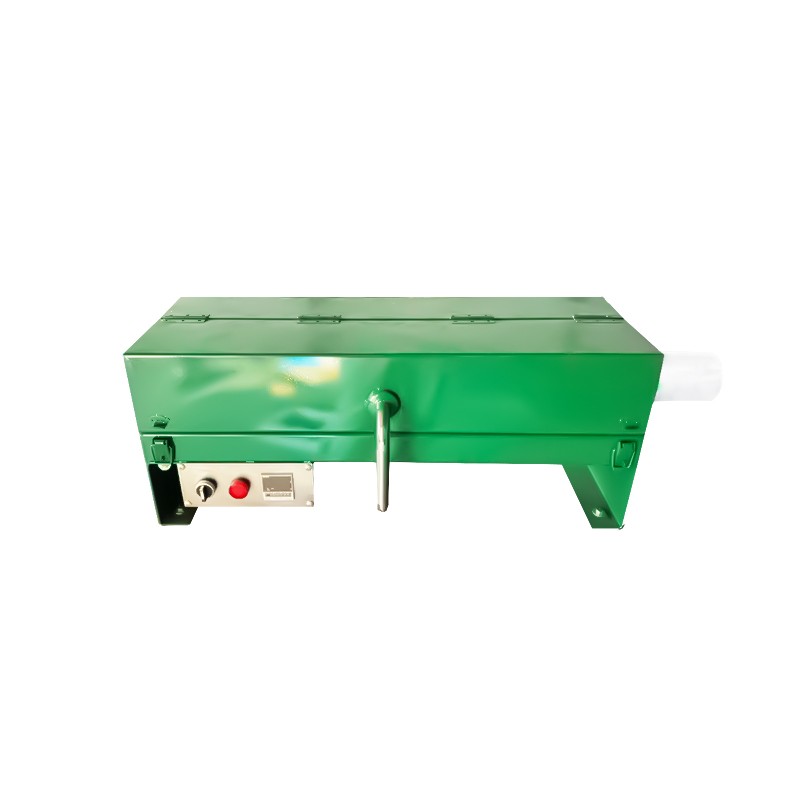

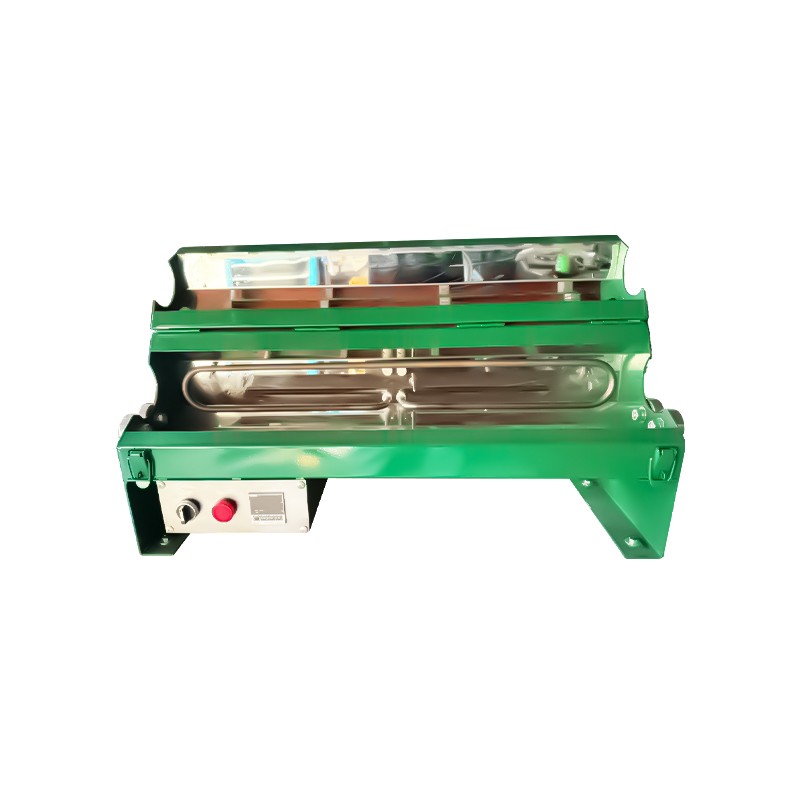

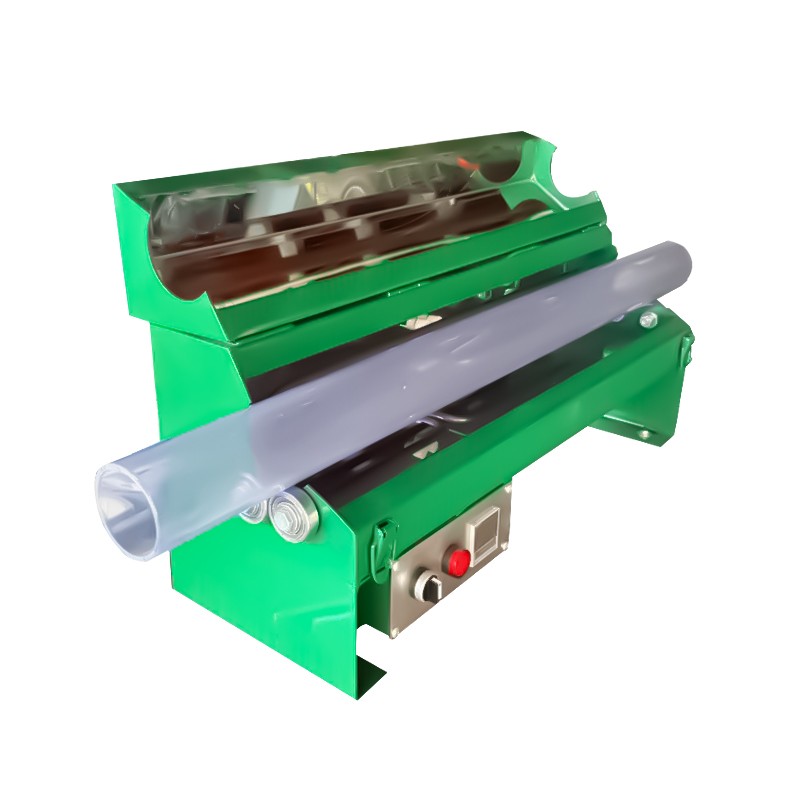

The PVC Pipe Heater is a professional heating tool designed specifically for PVC pipe processing. Its core function is to soften the PVC pipe through uniform and controllable heating, providing stable conditions for key processes such as pipe bending, cutting, and connecting.
Model
Heating Method
Voltage
Heating Temperature Range
Normal Heating Temperature
Temperature Control Method
Heating Power
Heating Time
Heater Material
Outline Size
Weight
Heating range
EPH75
Stainless steel heating tube
240V 50Hz 7A
0-300℃
150°C
Thermostat controls temperature
1500W
According to pipe wall thickness
2.0 steel sheet
780*320*320mm
20KGS
1/2″-2*1/2″(21.3-75.3mm)
EPH110
Stainless steel heating tube
240V 50Hz 10A
0-300℃
150°C
Thermostat controls temperature
2000W
According to pipe wall thickness
2.0 steel sheet
140*320*320mm
25KGS
2 1/2″-4″(75.3-114.3mm)
