Description
Product Details:

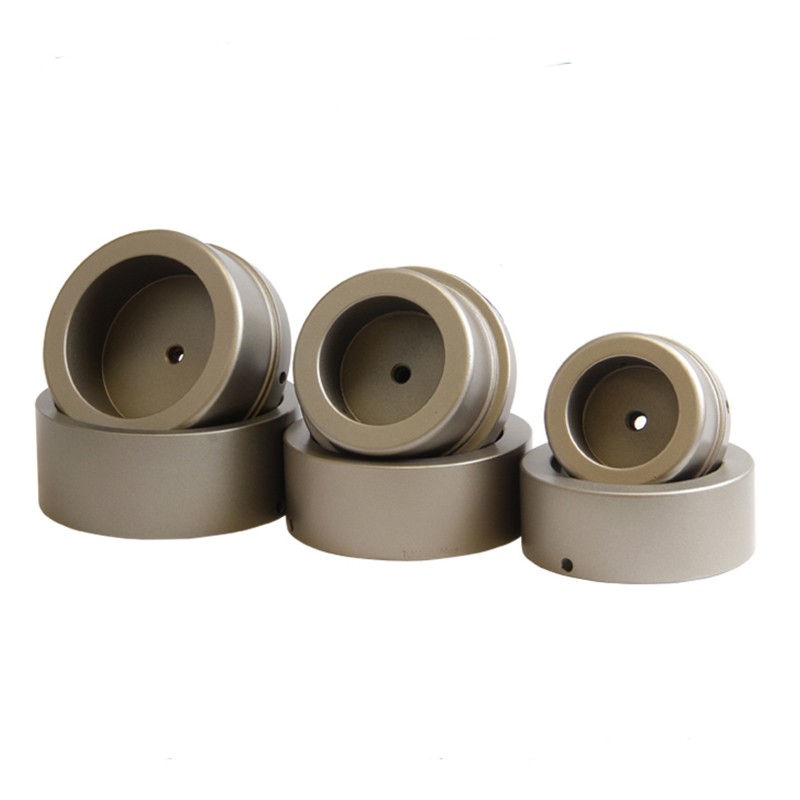

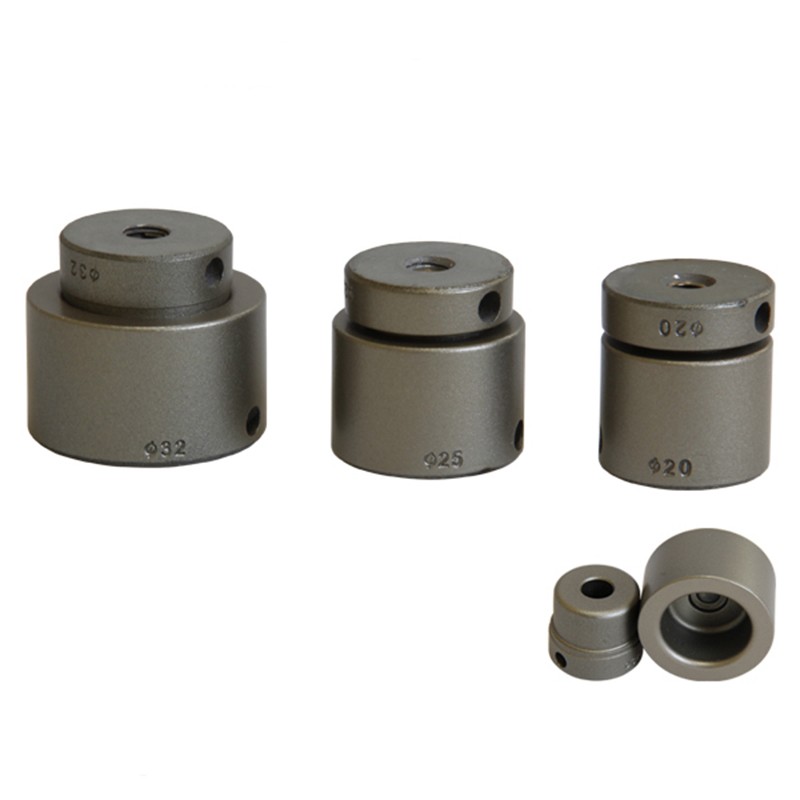

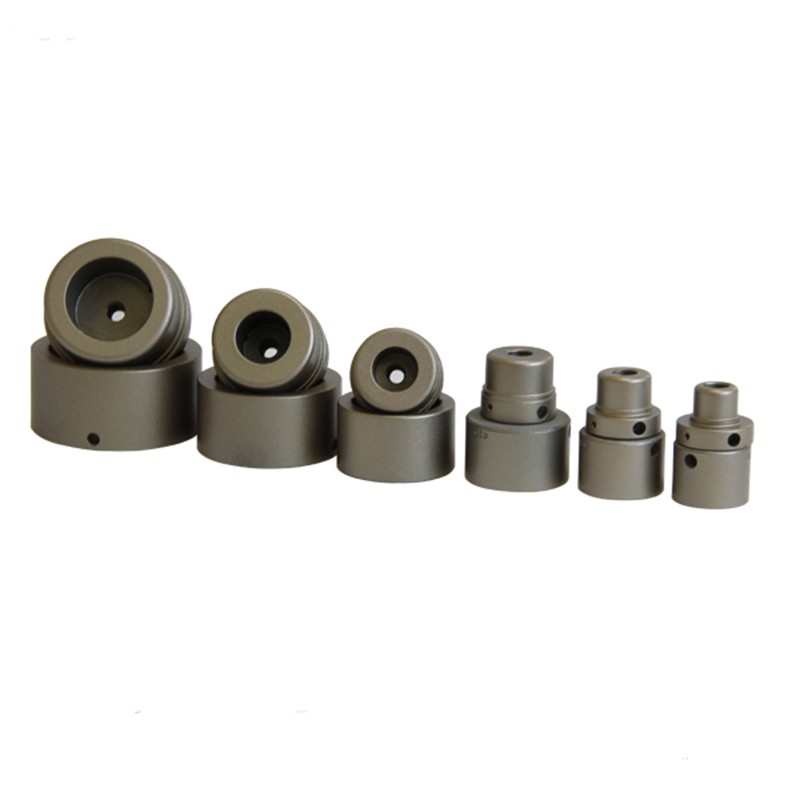

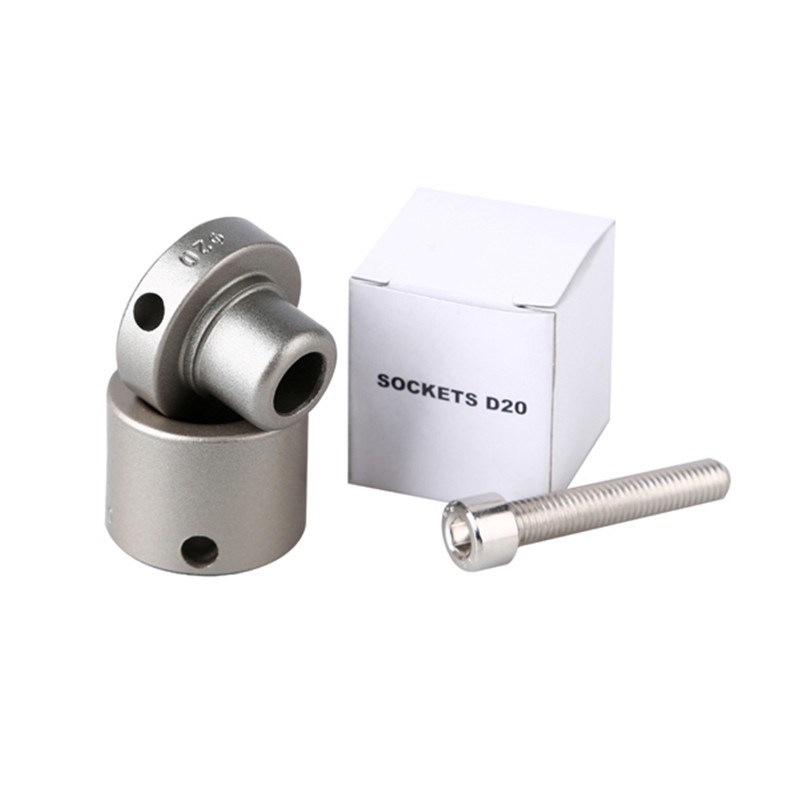

Item: Socket Fusion Adaptor
Size: 20mm-160mm
Material: Aluminum
Coating: Daikin Teflon
Color: Black and Golden or Customized
Other Sizes Available: 1/2" IPS, 3/4" IPS, 1" IPS, 1-1/4" IPS, 1-1/2" IPS, 2" IPS, 3" IPS, 4" IPS.
Welding Sockets:
|
16mm |
75mm |
|
20mm |
90mm |
|
25mm |
110mm |
|
32mm |
125mm |
|
40mm |
140mm |
|
50mm |
160mm |
|
63mm |
|
Specification For Welding Socket：
|
Diameter |
Diameter Of Male Head |
Diameter Of Female Head |
Heat Fusing Depth |
|||
|
|
A |
B |
A |
B |
A |
B |
|
16 |
16.04 |
15.84±0.04 |
15.54 |
15.44±0.04 |
13 |
13 |
|
20 |
20.05 |
19.78±0.04 |
19.53 |
19.38±0.04 |
14 |
14 |
|
25 |
25.04 |
24.77±0.04 |
24.51 |
24.32±0.04 |
15 |
16 |
|
32 |
32.03 |
31.75±0.04 |
31.50 |
31.26±0.04 |
16.5 |
18 |
|
40 |
40.02 |
39.76±0.04 |
39.48 |
39.20±0.04 |
18 |
20 |
|
50 |
50.02 |
49.68±0.06 |
49.46 |
49.19±0.06 |
20 |
23 |
|
63 |
62.99 |
62.60±0.06 |
62.46 |
62.10±0.06 |
24 |
27 |
|
75 |
74.91 |
74.59±0.06 |
74.32 |
74.00±0.06 |
26 |
31 |
|
90 |
89.92 |
89.57±0.06 |
89.33 |
88.93±0.06 |
29 |
35 |
|
110 |
109.88 |
109.49±0.06 |
109.29 |
108.80±0.06 |
32.5 |
41 |
