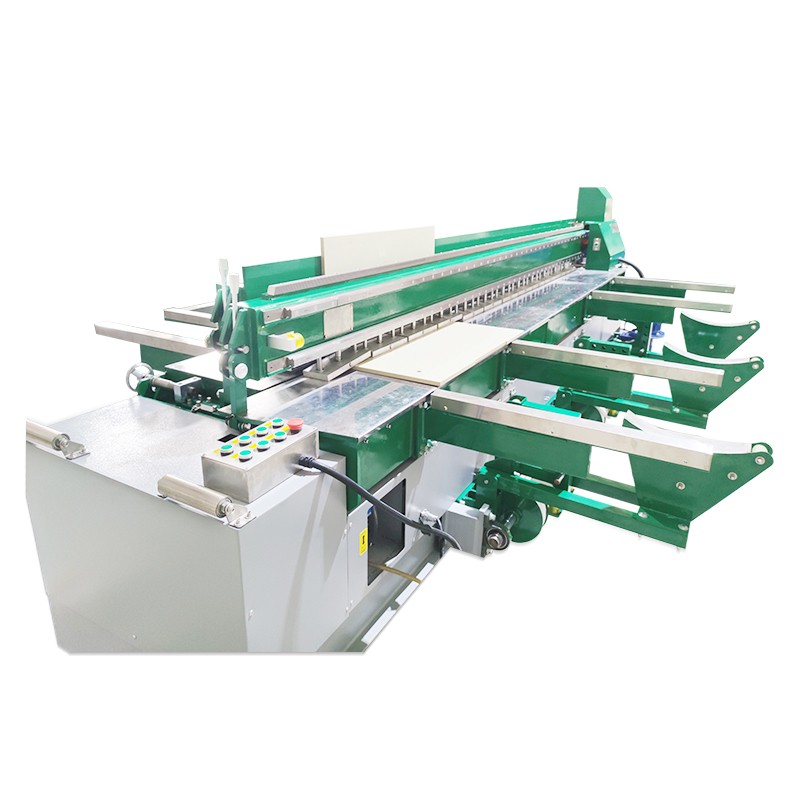

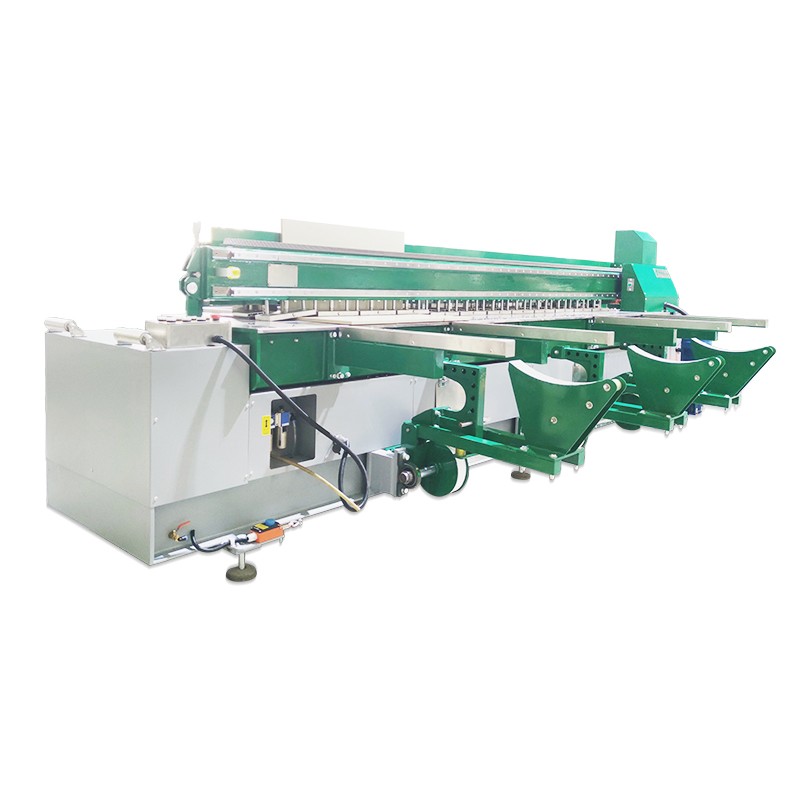

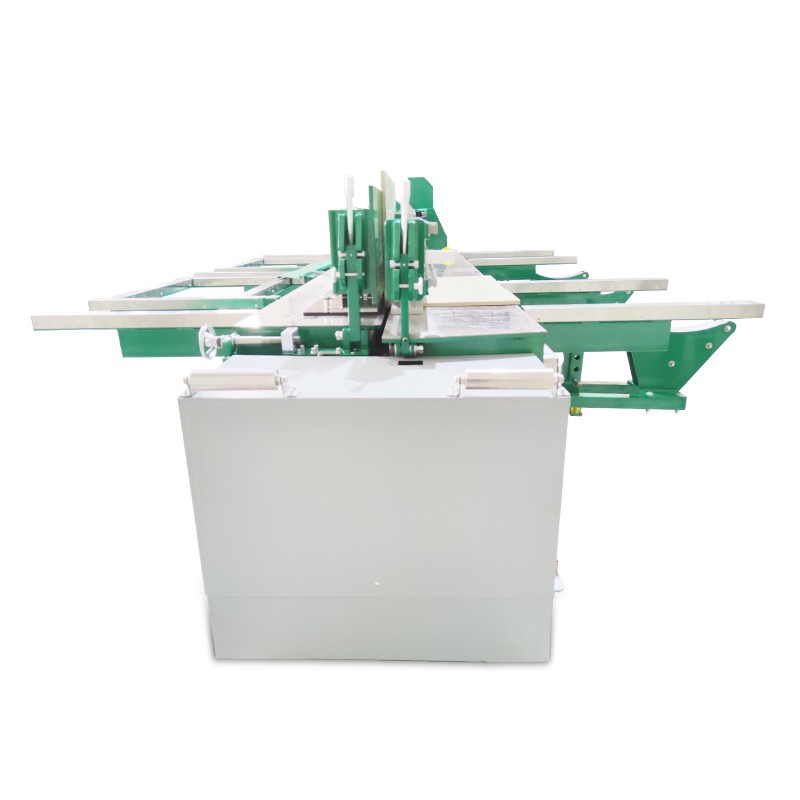

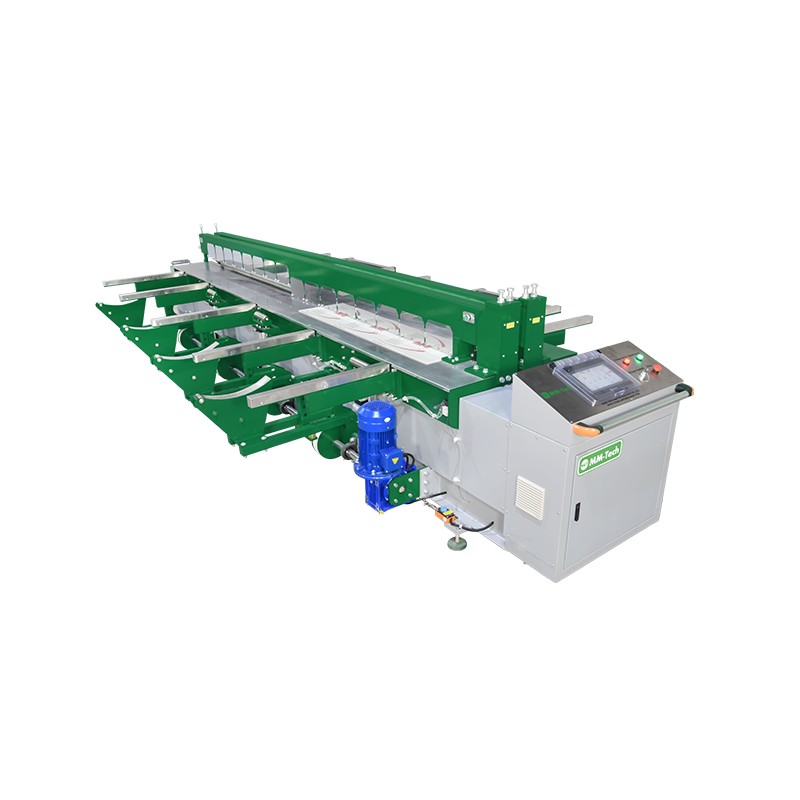

SWT series butt fusion welding machine are suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF.The machine is designed according to DVS 2208, and can operate in compliance with the DVS 2207.
SWT-PH series Sheet Butt Fusion Welding Machine
SWT-ZW series Bending Welding Machine
SWT-PZ series All in one bending butt fusion welding machine
SWT-YF series Engraving machine
SWT-XL series Cutting Saw
Horizontal weld & round (rolling) weld. Rolling the circular minimum size is 500mm, the bigger circular unlimited.
Bender plastic plate from 2-100 degree.
Welding function and bending function are both available in our model.
2.Efficient and accurate:
Siemens control system and touch screen control mode make the control efficient and accurate.
3.Easy to use:
Our strong point are to design easy-to-use equipments, not complicated ones.
You can finish every function within 5 steps with our model.
Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN),
with material thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers' request.
With most-to-up technology and top designers we successfully design and manufacture for customers.
The plates processed by our model have good-looking appearance and the angle is very strong.
It's easy to replace all consumable parts, most of them can be replaced within 2 minutes.
Machine Quality Guarantee : 24 months.
If any parts broken or does not work under normal operating, we are free to provide.
1. The electric system is placed in electric cabinet concentrately, so it is convenient for maintenance and check.
2. Press button control makes the operation easy and convenient.
3.The working panel's material is Q345 manganese, which is featured as non-being heated distortion; The platen's material is aluminum and for each platen there are two air cylinders providing the power, ensuring the compressive stress is very strong.
4.The heating pipe is inserted through the heating knife, so it is easy and convenient to replace the heating elements. The material of heating knife is imported grade aluminum, with teflon coated. It has the advantage of non-being heated distortion and non-stick.

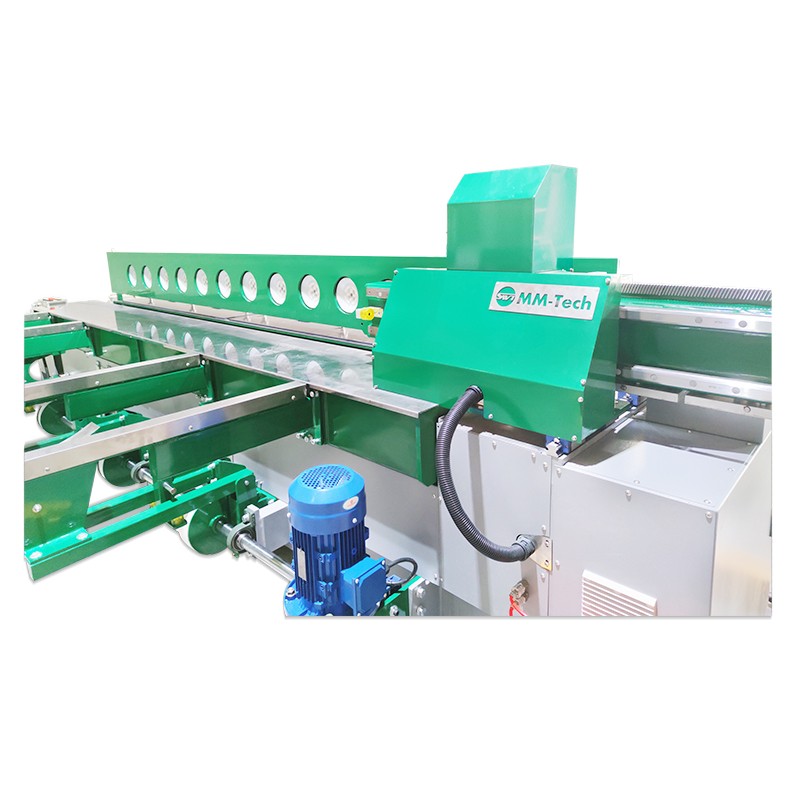

5.Specially designed rolling device makes the rolling work easy and labor saving.
6.Specially designed LED lights can make you observe the process of welding clearly.
