Description

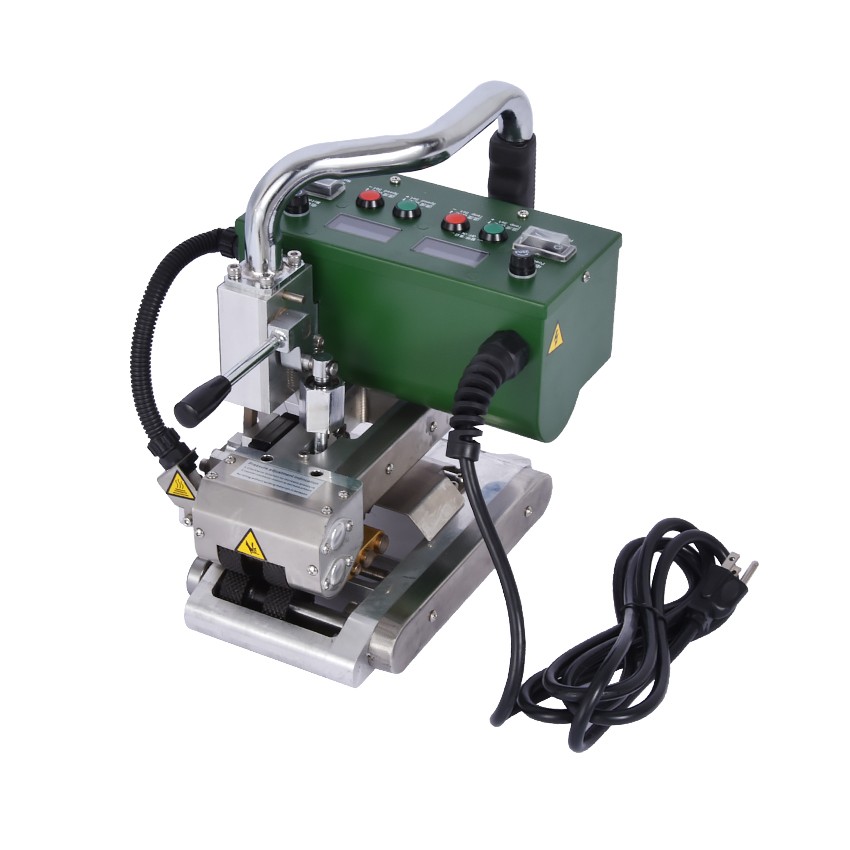

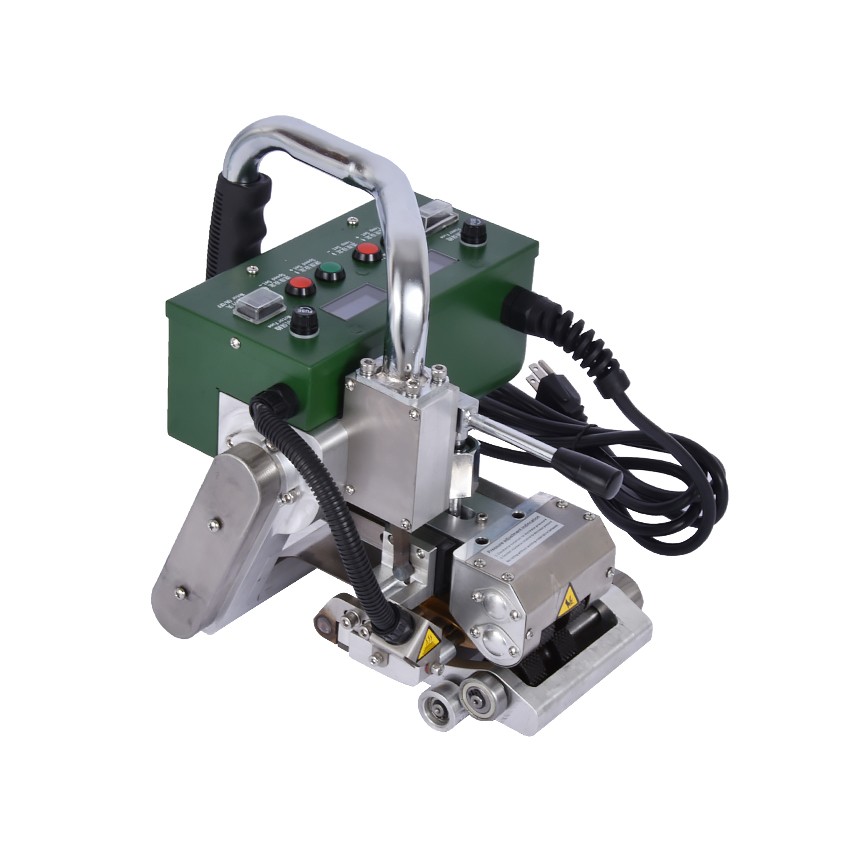

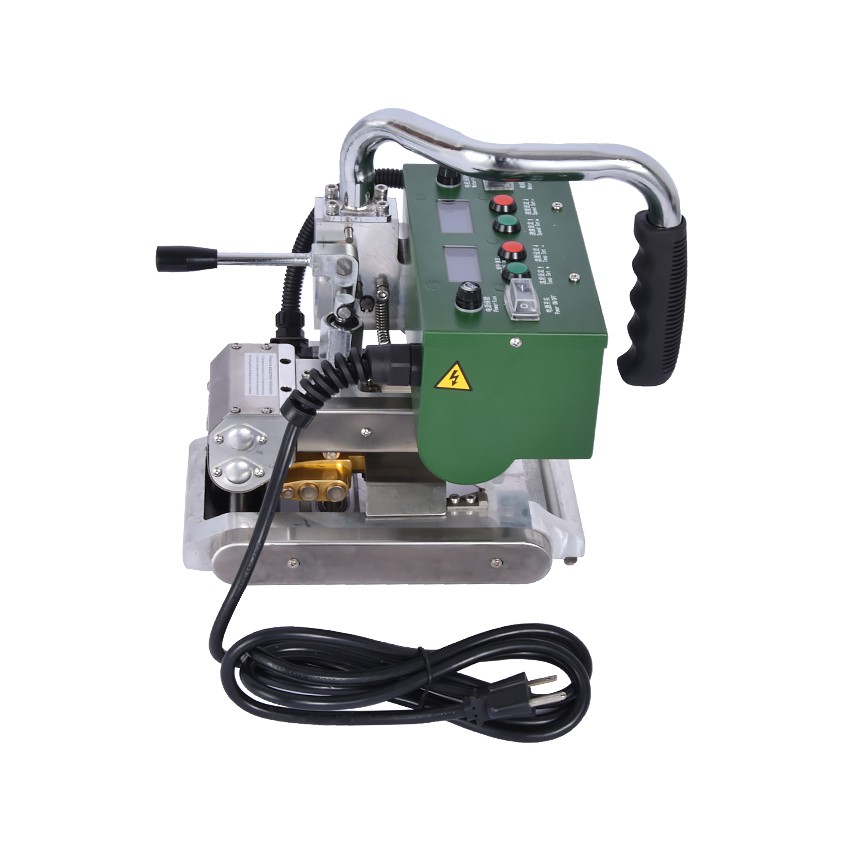

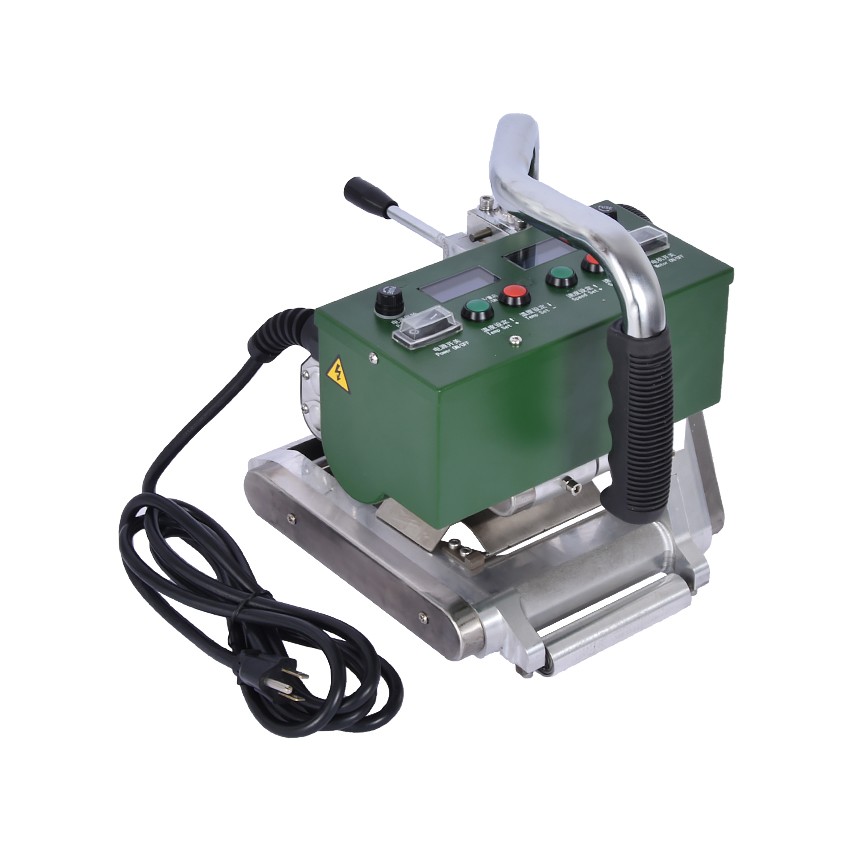

Geo-membrane welder is a new welding machine which is developed by our company.
They can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and PVC,HDPE,EVA,PP.
The control of this series adopt PID automatic thermostatic control with high control and low temperature fluctuation. Speed control of this series adopt PWM automatic voltage and regulation speed circuit. Direct current servo the motor drive with great output torque and staple performance in walking. It can maintain a constant speed on the condition of creeping, vertical creeping and road load. Also this series of welding machine are stable in performance despite of external temperature and voltage variation.This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction.
Technical Parameter
Voltage: 220 V ± 5%
Frequency: 50/60Hz
Power: 1200W
Welding temp: 0-450 ℃
Welding Speed: 0.5-8 m/min
Thickness of material: 0.2-2.0 mm
Welding width: 15 mm *2, interior cavity 20 mm
Overlap width: 120 mm
Seam Strength: ≥85% base material ( tensile resistant in shear direction)
Weight: 7.5 Kg
Size: 350(L) X 267mm(W) X 267mm(H)
International warranty 24months.
Any parts broken or does not work under normal operating,we are free to provide.
They can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and PVC,HDPE,EVA,PP.
The control of this series adopt PID automatic thermostatic control with high control and low temperature fluctuation. Speed control of this series adopt PWM automatic voltage and regulation speed circuit. Direct current servo the motor drive with great output torque and staple performance in walking. It can maintain a constant speed on the condition of creeping, vertical creeping and road load. Also this series of welding machine are stable in performance despite of external temperature and voltage variation.This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction.
Technical Parameter
Voltage: 220 V ± 5%
Frequency: 50/60Hz
Power: 1200W
Welding temp: 0-450 ℃
Welding Speed: 0.5-8 m/min
Thickness of material: 0.2-2.0 mm
Welding width: 15 mm *2, interior cavity 20 mm
Overlap width: 120 mm
Seam Strength: ≥85% base material ( tensile resistant in shear direction)
Weight: 7.5 Kg
Size: 350(L) X 267mm(W) X 267mm(H)
International warranty 24months.
Any parts broken or does not work under normal operating,we are free to provide.
